fix #8975 - Change how barline distance is used in order to avoid collisions in double bar lines #9138

asattely · 2021-09-15T19:52:42Z

Resolves: #8975

Before, style options such as endBarDistance or doubleBarDistance described the distance between the mid points of the bar lines. This created an inconsistent distance when the line thicknesses were changed. Now, those distance style settings describe the distance between the right side of one bar and the left side of another.

…llisions in double bar lines Backporf of musescore#9138

RomanPudashkin · 2021-09-16T07:47:49Z

src/engraving/libmscore/barline.cpp

-        x += score()->styleP(Sid::repeatBarlineDotSeparation) * mag();
-        x -= symBbox(SymId::repeatDot).width() * .5;
+        x += ((lw * .5) + score()->styleP(Sid::repeatBarlineDotSeparation)) * mag();
+        //x -= symBbox(SymId::repeatDot).width() * .5;


Please, remove this line

RomanPudashkin · 2021-09-16T07:47:56Z

src/engraving/libmscore/barline.cpp

-        x += score()->styleP(Sid::repeatBarlineDotSeparation) * mag();
-        x -= symBbox(SymId::repeatDot).width() * .5;
+        x += ((lw * .5) + score()->styleP(Sid::repeatBarlineDotSeparation)) * mag();
+        //x -= symBbox(SymId::repeatDot).width() * .5;


Please, remove this line

…llisions in double bar lines Backporf of musescore#9138

Jojo-Schmitz · 2021-09-16T11:40:50Z

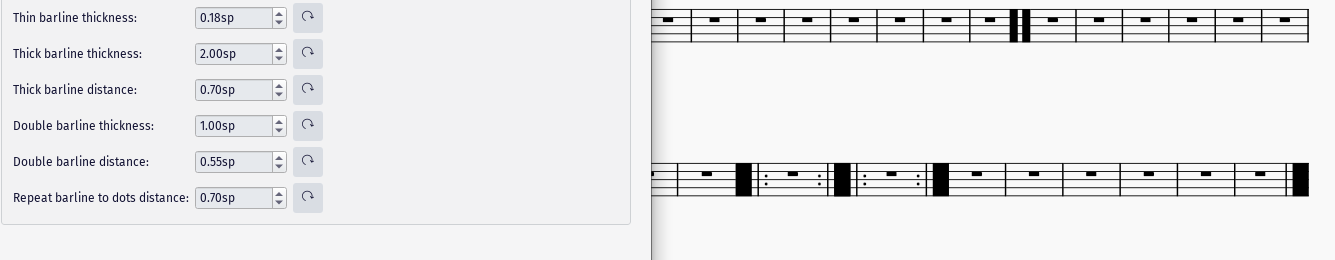

Seems with this all double barlines are too far apart from one another? Maybe now we'd need to half endBarDistance and doubleBarDistance?

This does show how important functioning vtests are!
My attempt to port this to 3.x and the vtests there show the problem quite clearly.

…llisions in double bar lines Backport of musescore#9138

Jojo-Schmitz · 2021-09-16T12:12:50Z

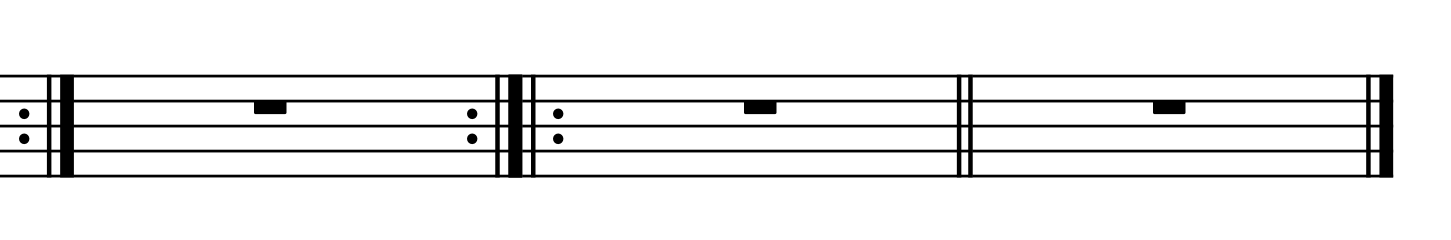

Vs. this:

Patch used (for 3.x):

diff --git a/libmscore/barline.cpp b/libmscore/barline.cpp
index b6d96eb162..c872d77da4 100644
--- a/libmscore/barline.cpp
+++ b/libmscore/barline.cpp
@@ -585,7 +585,7 @@ void BarLine::draw(QPainter* painter) const

                   qreal lw2 = score()->styleP(Sid::endBarWidth) * mag();
                   painter->setPen(QPen(curColor(), lw2, Qt::SolidLine, Qt::FlatCap));
-                  x += ((lw * .5) + score()->styleP(Sid::endBarDistance) + (lw2 * .5)) * mag();
+                  x += ((lw * .5) + (score()->styleP(Sid::endBarDistance) * .5) + (lw2 * .5)) * mag();
                   painter->drawLine(QLineF(x, y1, x, y2));
                   }
                   break;
@@ -595,7 +595,7 @@ void BarLine::draw(QPainter* painter) const
                   painter->setPen(QPen(curColor(), lw, Qt::SolidLine, Qt::FlatCap));
                   qreal x = lw * .5;
                   painter->drawLine(QLineF(x, y1, x, y2));
-                  x += ((lw * .5) + score()->styleP(Sid::doubleBarDistance) + (lw * .5)) * mag();
+                  x += ((lw * .5) + (score()->styleP(Sid::doubleBarDistance) * .5) + (lw * .5)) * mag();
                   painter->drawLine(QLineF(x, y1, x, y2));
                   }
                   break;
@@ -608,7 +608,7 @@ void BarLine::draw(QPainter* painter) const

                   qreal lw2 = score()->styleP(Sid::barWidth) * mag();
                   painter->setPen(QPen(curColor(), lw2, Qt::SolidLine, Qt::FlatCap));
-                  x += ((lw * .5) + score()->styleP(Sid::endBarDistance) + (lw2 * .5)) * mag();
+                  x += ((lw * .5) + (score()->styleP(Sid::endBarDistance) * .5) + (lw2 * .5)) * mag();
                   painter->drawLine(QLineF(x, y1, x, y2));
                   }
                   break;
@@ -625,7 +625,7 @@ void BarLine::draw(QPainter* painter) const
                   painter->setPen(QPen(curColor(), lw2, Qt::SolidLine, Qt::FlatCap));
                   qreal x = lw2 * .5;
                   painter->drawLine(QLineF(x, y1, x, y2));
-                  x += ((lw2 * .5) + score()->styleP(Sid::endBarDistance) + (lw2 * .5)) * mag();
+                  x += ((lw2 * .5) + (score()->styleP(Sid::endBarDistance) * .5) + (lw2 * .5)) * mag();
                   painter->drawLine(QLineF(x, y1, x, y2));
                   }
                   break;
@@ -638,7 +638,7 @@ void BarLine::draw(QPainter* painter) const

                   qreal lw = score()->styleP(Sid::barWidth) * mag();
                   painter->setPen(QPen(curColor(), lw, Qt::SolidLine, Qt::FlatCap));
-                  x += ((lw2 * .5) + score()->styleP(Sid::endBarDistance) + (lw * .5)) * mag();
+                  x += ((lw2 * .5) + (score()->styleP(Sid::endBarDistance) * .5) + (lw * .5)) * mag();
                   painter->drawLine(QLineF(x, y1, x, y2));

                   x += ((lw * .5) + score()->styleP(Sid::repeatBarlineDotSeparation)) * mag();
@@ -661,7 +661,7 @@ void BarLine::draw(QPainter* painter) const
                   painter->drawLine(QLineF(x, y1, x, y2));

                   qreal lw2 = score()->styleP(Sid::endBarWidth) * mag();
-                  x += ((lw * .5) + score()->styleP(Sid::endBarDistance) + (lw2 * .5)) * mag();
+                  x += ((lw * .5) + (score()->styleP(Sid::endBarDistance) * .5) + (lw2 * .5)) * mag();
                   painter->setPen(QPen(curColor(), lw2, Qt::SolidLine, Qt::FlatCap));
                   painter->drawLine(QLineF(x, y1, x, y2));

@@ -681,7 +681,7 @@ void BarLine::draw(QPainter* painter) const
                   painter->drawLine(QLineF(x, y1, x, y2));

                   qreal lw2 = score()->styleP(Sid::endBarWidth) * mag();
-                  x += ((lw * .5) + score()->styleP(Sid::endBarDistance) + (lw2 * .5)) * mag();
+                  x += ((lw * .5) + (score()->styleP(Sid::endBarDistance) * .5) + (lw2 * .5)) * mag();
                   painter->setPen(QPen(curColor(), lw2, Qt::SolidLine, Qt::FlatCap));
                   painter->drawLine(QLineF(x, y1, x, y2));

@@ -689,7 +689,7 @@ void BarLine::draw(QPainter* painter) const
                         drawTips(painter, true, x + lw2 * .5);

                   painter->setPen(QPen(curColor(), lw, Qt::SolidLine, Qt::FlatCap));
-                  x  += ((lw2 * .5) + score()->styleP(Sid::endBarDistance) + (lw * .5)) * mag();
+                  x  += ((lw2 * .5) + (score()->styleP(Sid::endBarDistance) * .5) + (lw * .5)) * mag();
                   painter->drawLine(QLineF(x, y1, x, y2));

                   x += ((lw * .5) + score()->styleP(Sid::repeatBarlineDotSeparation)) * mag();
@@ -1244,16 +1244,16 @@ qreal BarLine::layoutWidth(Score* score, BarLineType type)
       switch (type) {
             case BarLineType::DOUBLE:
                   w = (score->styleP(Sid::doubleBarWidth) * 2)
-                     + score->styleP(Sid::doubleBarDistance);
+                     + (score->styleP(Sid::doubleBarDistance) * .5);
                   break;
             case BarLineType::DOUBLE_HEAVY:
                   w = (score->styleP(Sid::endBarWidth) * 2)
-                     + score->styleP(Sid::endBarDistance);
+                     + (score->styleP(Sid::endBarDistance) * .5);
                   break;
             case BarLineType::END_START_REPEAT:
                   w = score->styleP(Sid::endBarWidth)
                      + (score->styleP(Sid::barWidth) * 2)
-                     + (score->styleP(Sid::endBarDistance) * 2)
+                     + score->styleP(Sid::endBarDistance)
                      + (score->styleP(Sid::repeatBarlineDotSeparation) * 2)
                      + (dotwidth * 2);
                   break;
@@ -1261,7 +1261,7 @@ qreal BarLine::layoutWidth(Score* score, BarLineType type)
             case BarLineType::END_REPEAT:
                   w = score->styleP(Sid::endBarWidth)
                      + score->styleP(Sid::barWidth)
-                     + score->styleP(Sid::endBarDistance)
+                     + (score->styleP(Sid::endBarDistance) * .5)
                      + score->styleP(Sid::repeatBarlineDotSeparation)
                      + dotwidth;
                   break;
@@ -1269,7 +1269,7 @@ qreal BarLine::layoutWidth(Score* score, BarLineType type)
             case BarLineType::REVERSE_END:
                   w = score->styleP(Sid::endBarWidth)
                      + score->styleP(Sid::barWidth)
-                     + score->styleP(Sid::endBarDistance);
+                     + (score->styleP(Sid::endBarDistance) * .5);
                   break;
             case BarLineType::BROKEN:
             case BarLineType::NORMAL:

asattely · 2021-09-16T13:46:41Z

The bars are now too far apart because the 'distance' style parameters are now interpreted in a different way. I'm going to add a commit today that changes those default values to bring them closer to how it looks like in previous versions.

Note that it's never going to be exactly the same because in previous versions the same value for distance could produce different effective distances due to the fact that line thickness ate into them

distance style options now refer to the space between lines, not the distance between their centers.

Jojo-Schmitz · 2021-09-16T13:57:51Z

That though would influence how these settings from scores imported from 3.x do get interpreted. So we'd need to adjust those on import.
But yes, my * .5 fix shows some (minimal) differences.

asattely · 2021-09-16T14:05:44Z

Removed unnecessary commented code and changed the defaults in styledef to account for distance interpretation. Assuming all stock default options, I subtracted the amount of space that was eaten up by line thickness (for example double bar distance I subtracted the default double bar thickness because half of one barline and half of the other used to be included in the distance value)

Jojo-Schmitz · 2021-09-16T14:13:58Z

As said: changing those defaults will fix the issue for new scores and for imported (pre 4.x) scores that never set those valued away from the default, but not for those that did change those values. So on import, these need to get adjusted.
Easiest might be to just half them?

asattely · 2021-09-16T14:27:51Z

As said: changing those defaults will fix the issue for new scores and for imported (pre 4.x) scores that never set those valued away from the default, but not for those that did change those values. So on import, these need to get adjusted.
Easiest might be to just half them?

The process of converting old scores to new scores is going to be separate functionality--the current style defaults are the ones that apply to new scores in 4.0. How we deal with upconverting 3.x scores is going to be a different issue we'll see in the future, and those decisions can be made at that point I figure

Jojo-Schmitz · 2021-09-16T14:29:02Z

IMHO these need to be decided upon now, else it'd get forgotten.

asattely · 2021-09-16T14:38:14Z

Well I'm in the process of writing up a big list of added and changed style parameters that can be maintained by whoever is changing or adding them, with old and new defaults, but in any case old score conversion is outside the scope of this particular issue. Conversion is going to be a big issue that tackles a lot of different aspects and I think it'd be better to have all of the work for that centralized in one location rather than changed piecemeal in dozens of other pull requests.

Certainly the code that is changed in this pull request has absolutely nothing to do with score conversion, so for now let's keep this the way it is and I'll post the link to the wiki page I create today later.

Jojo-Schmitz · 2021-09-16T14:44:26Z

Well, as far as I'm aware these 3 values are the first and only changed defaults.

But as long as it doesn't get forgotten...
