Conversation

@WardenGnaw
Copy link
Member

This allows OpenDebugAD7 to support the ReadMemoryRequest for DAP.

Copy link
Member

@gregg-miskelly gregg-miskelly left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Waiting for the protocol to be fully implemented.

@gregg-miskelly
Copy link
Member

internal class AD7DebugSession : DebugAdapterBase, IDebugPortNotify2, IDebugEventCallback2

Need to also send a ProcessEvent with PointerSize defined


Refers to: src/OpenDebugAD7/AD7DebugSession.cs:30 in dbd0fe3. [](commit_id = dbd0fe3, deletion_comment = False)

@gregg-miskelly
Copy link
Member

{

VariableManager.CreateVariable needs to populate the memoryReference


Refers to: src/OpenDebugAD7/AD7DebugSession.cs:31 in dbd0fe3. [](commit_id = dbd0fe3, deletion_comment = False)

@WardenGnaw WardenGnaw marked this pull request as draft August 18, 2020 20:26
@WardenGnaw
Copy link
Member Author

WardenGnaw commented Aug 18, 2020

Converting to Draft. I need to finish up the messaging on the VS Code side to fully test this.

Won't block for VS Code UI since this can be used in VS scenarios.

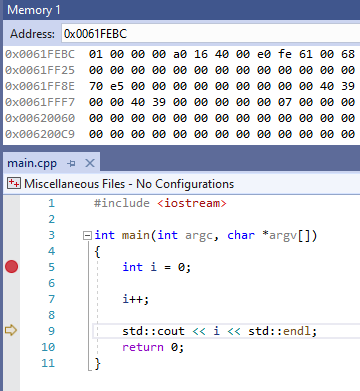

 1> [DebugAdapter] --> C (evaluate-35): {"type":"request","command":"evaluate","arguments":{"context":"hover","expression":"&i","frameId":1000,"noSideEffects":true,"timeout":2000},"seq":35}
 1> [DebugAdapter] <--   R (evaluate-35) [15 ms]: {"type":"response","request_seq":35,"success":true,"command":"evaluate","body":{"result":"0x61febc","type":"int *","variablesReference":1002,"memoryReference":"0x0061febc"},"seq":68}
 1> [DebugAdapter] --> C (readMemory-36): {"type":"request","command":"readMemory","arguments":{"memoryReference":"0x0061febc","offset":-735,"count":2205},"seq":36}
 1> [DebugAdapter] <--   R (readMemory-36) [12 ms]: {"type":"response","request_seq":36,"success":true,"command":"readMemory","body":{"address":"0x61FBDD","unreadableBytes":1145,"data":"FGwAsAAAAHACbAAAAGwAfwAAALB5bAB/AAAAAABsALgUbAAAAAAAAABsAMYAAMZ............"},"seq":69}

This allows OpenDebugAD7 to support the ReadMemoryRequest for DAP.

This also implements MemoryReferences in EvaluateRequest.
@WardenGnaw WardenGnaw force-pushed the dev/waan/readMemory branch from dbd0fe3 to 5e9669a Compare August 25, 2020 00:30
@WardenGnaw
Copy link
Member Author

@gregg-miskelly Do we want to add memoryReference to all variables created by VariableManager.CreateVariable?

Used in:
HandleVariablesRequestAsync

which also calls
VariablesFromFrame

@gregg-miskelly
Copy link
Member

gregg-miskelly commented Aug 25, 2020

@gregg-miskelly Do we want to add memoryReference to all variables created by VariableManager.CreateVariable?

I think you would want to add them to any variable where GetMemoryContext succeeds. Just like what you are doing in HandleEvaluateRequestAsync. Probably worth pulling that out into a helper.

Copy link
Member

@gregg-miskelly gregg-miskelly left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Otherwise LGTM.

@WardenGnaw WardenGnaw marked this pull request as ready for review September 2, 2020 01:30
@WardenGnaw WardenGnaw merged commit e1b8dda into master Sep 2, 2020
@WardenGnaw WardenGnaw deleted the dev/waan/readMemory branch September 4, 2020 19:01
