Dual display extension for Store Commerce

[ViktorVu602]

Hi experts,

I hope everyone is having a great day. Today, I would like to have a question about dual display extension for Store Commerce.
Currently, I am having a customer created a dual display extension referenced from this document: https://learn.microsoft.com/en-us/dynamics365/commerce/dev-itpro/pos-dual-display-extension

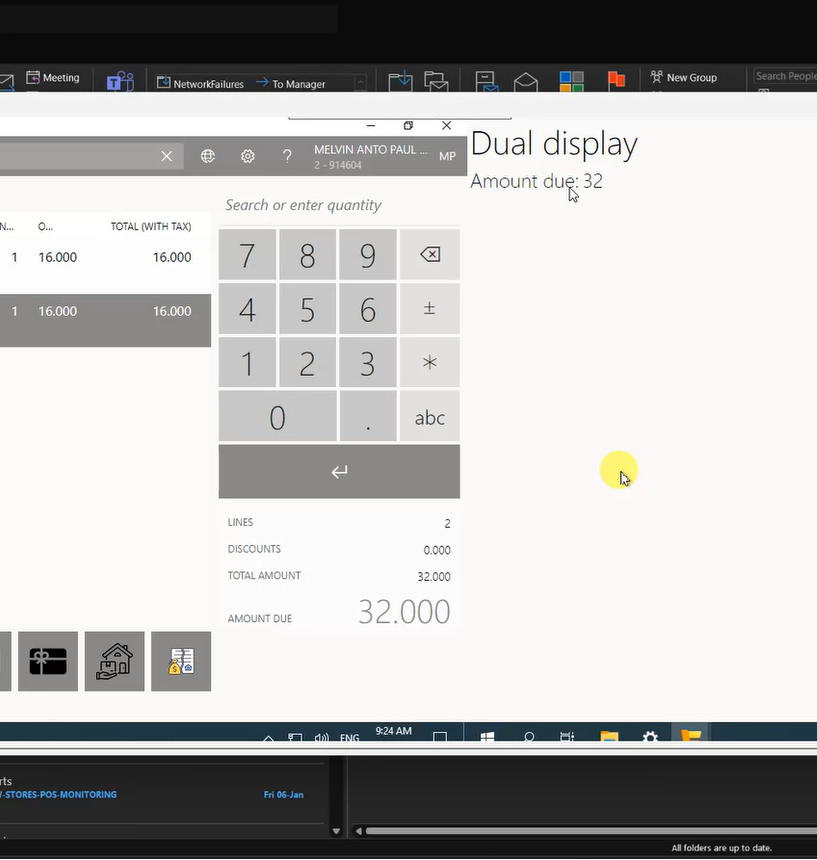

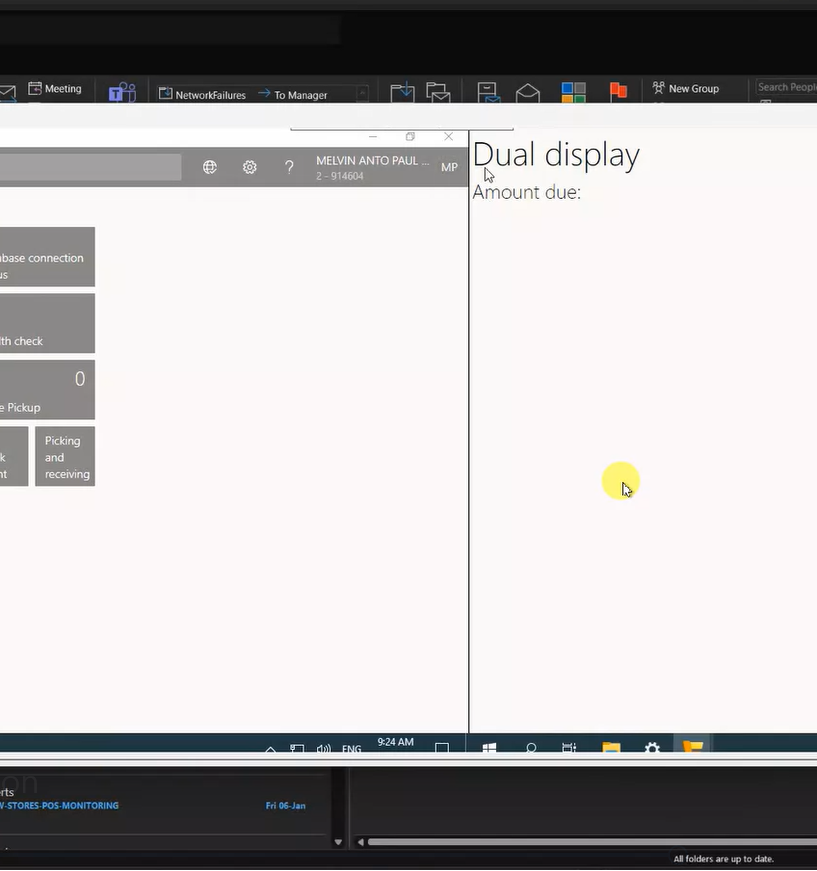

The extension has worked fine on MPOS but as customer is moving to Store Commerce, they tried to create the same extension and it is not having the same result. In particular, while the package is built and installed with no issue, there are some info not being displayed correctly:

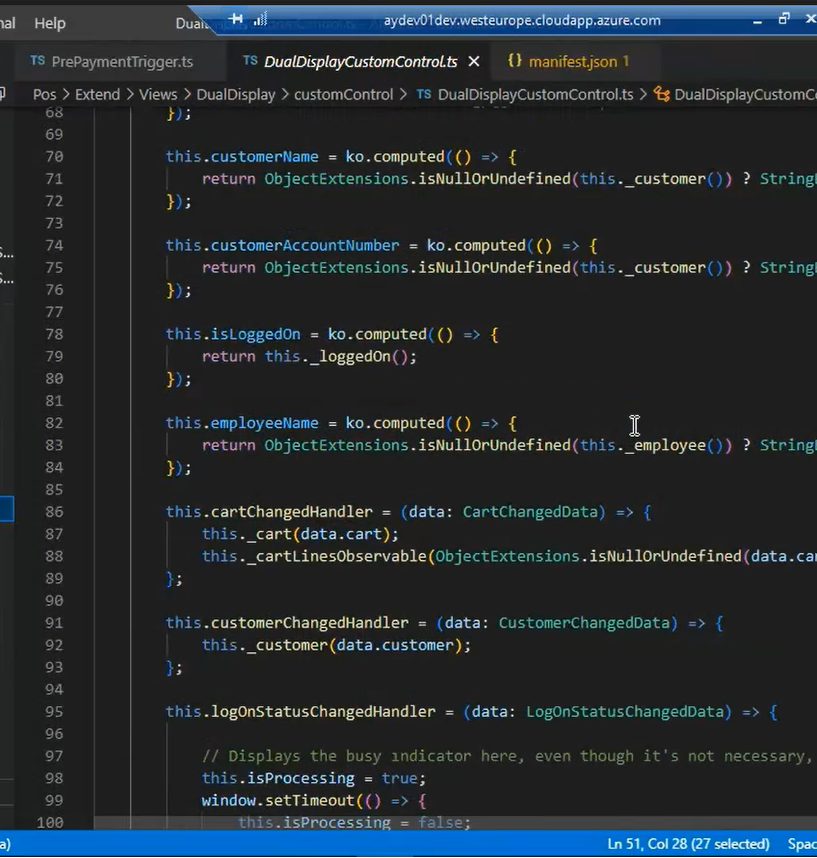

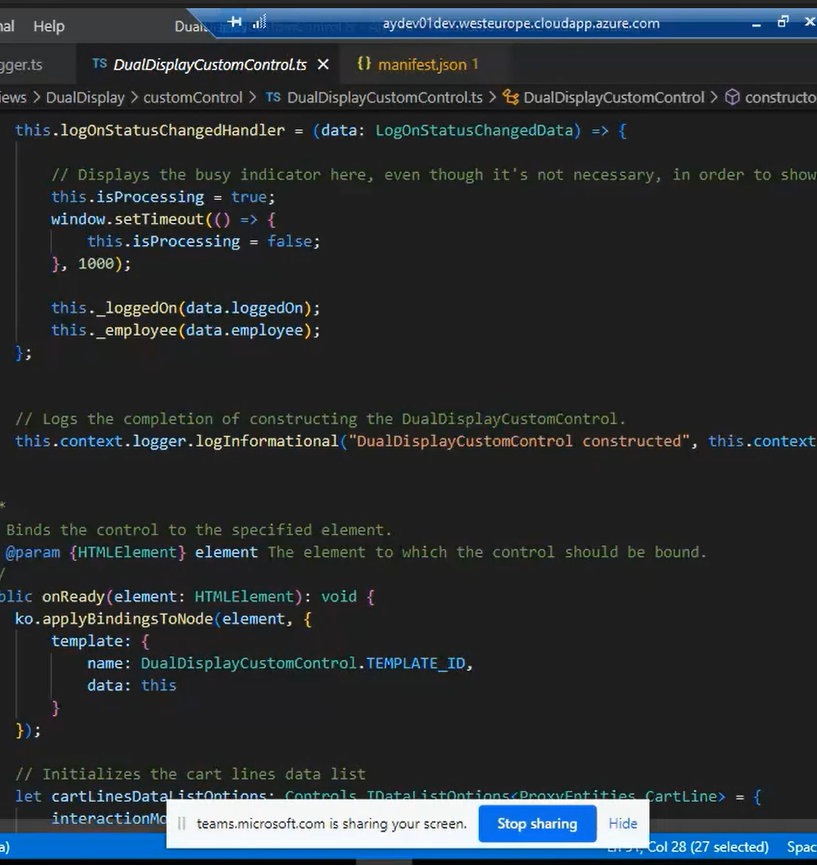

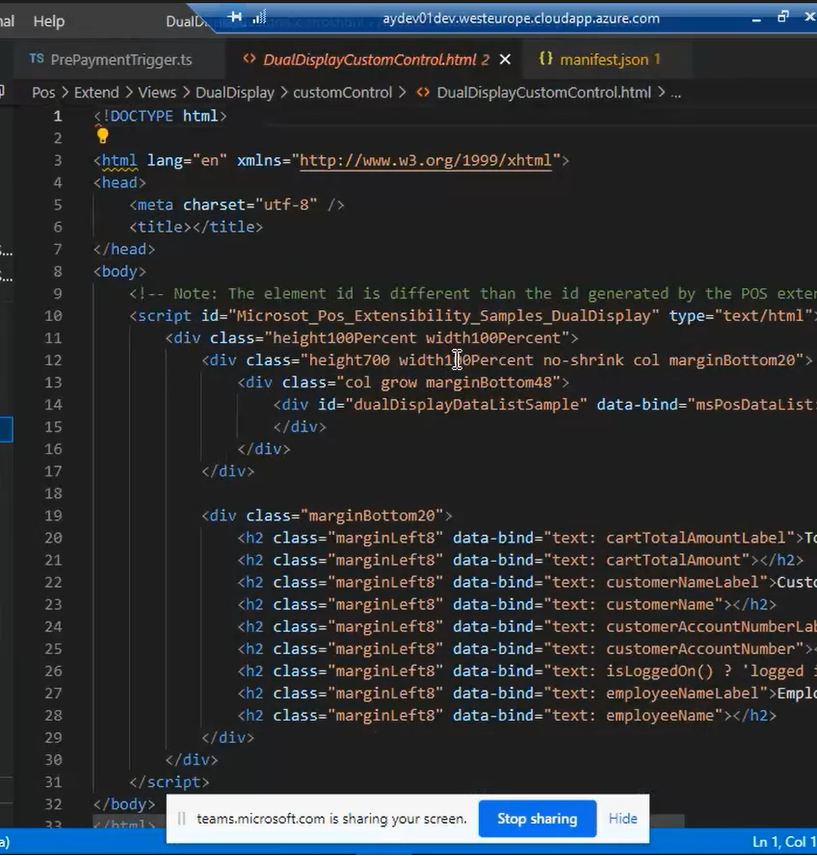

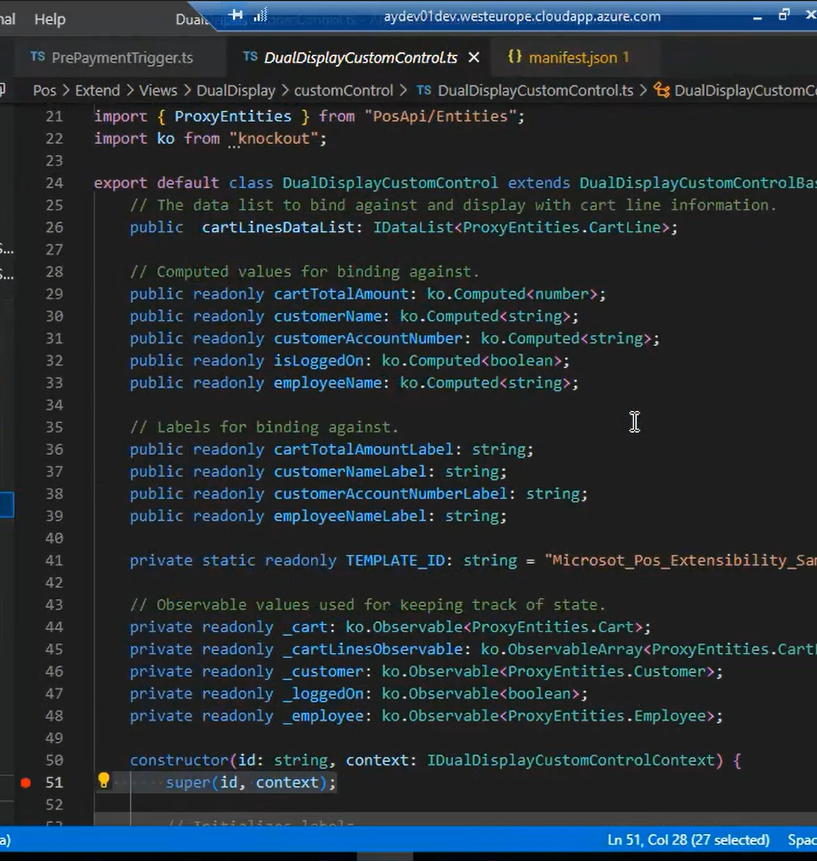

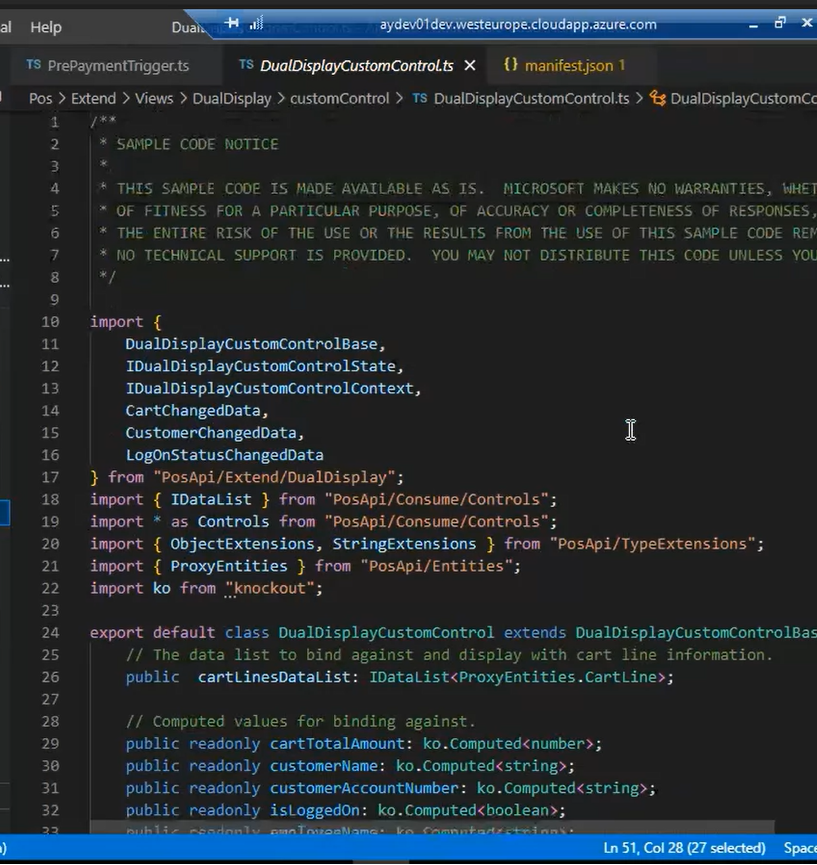

I have also taken some screenshots of customer’s extension:





Ask: With this info, I would like to confirm if Store Commerce is currently supporting a dual display extension?
In case it does, may I know if there are any changes customer has to do with their extension for it to be compatible with Store Commerce app?

[madyke]

Hi @ViktorVu602 - yes, Store Commerce supports dual display extensions. I discussed with Luke and we couldn't think of any reason why the extension stopped working when transitioning from MPOS to Store Commerce. We'll take a look at the code and see if we can spot anything that may be going wrong.

[ViktorVu602]

Hi @madyke - customer have tried altering their manifest,json file and while they could load the extension, however, data is not being shown on the dual display extension.

May I ask if you can provide some input on this ticket when you have the time?

[madyke]

Hello @ViktorVu602 - I tested this with our sample dual display extension today. While the doc you mentioned and the published sample are both out of date and using the old RetailSDK, when I updated the imports to the new CommerceSDK and commented out the sections that it doesn't look like the customer is using, everything worked fine for me.

It's difficult to see any differences between the sample and what the customer has done in their extension from just the screenshots of code. Can you provide the customer's DualDisplayCustomControl.ts file either here or over email so I can check what exactly is going on there and try testing it on my VM?

[ViktorVu602]

Hi @madyke - I will attach customer's DualDisplayCustomControl.ts and DualDisplayCustomControl.html via email since the file types are not supported here.

[madyke]

Hi @ViktorVu602 - Luke and I debugged this today and were able to find a couple of fixes that can be made to get this working:

In DualDisplayCustomControl.ts:

• Add this line to the end of this.cartChangedHandler, which will update the cart lines in the dual display when the cart is changed:
  this.cartLinesDataList.data = ObjectExtensions.isNullOrUndefined(data.cart) ? [] : data.cart.CartLines;
• In onReady:
  • On line 123, add parenthesis to the cart lines observable object:
    data: this._cartLinesObservable(),
  • Move the definition of dataListRootElem and the call to the control factory after the call to ko.applyBindingsToNode. This was the main reason the extension didn't work, since the customer was trying to get access to that HTML element before it had been bound by knockout.

In DualDisplayCustomControl.html:

• Remove data-bind="msPosDataList: cartLinesDataList", it's no longer needed since the cart lines are added in onReady.

[ViktorVu602]

Hi @madyke, thank you for providing the solution for this issue. As customer has confirmed the solution worked, we can close this discussion.
Again, I would like to thank you for all the help you provided on this discussion.

Best regards,
Viktor

[Osamaasif9312]

Hi @ViktorVu602 & @madyke,

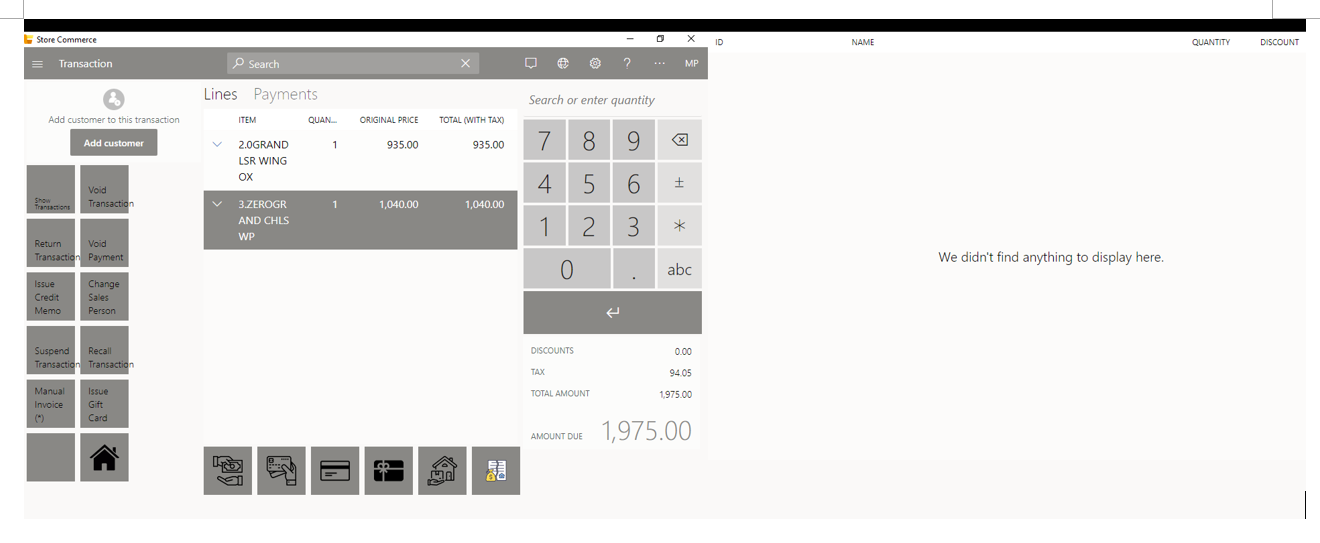

I am also migrating from MPOS to store commerce and after deploying dual display it is showing same screen as above. It will be very helpful if you guys can share dual display extension with me.

Thanks in advance.
