Stream configuration

[LaPetiteSouris]

Statement of purpose

The PR is to add support the customizing stream's configuration upon creation.

Currently the following configurations StreamConfiguration are set once for all on broker's level.

When a CreateStream request is created, client should have the chance to set the configuration by themselves, which will overwrite the default configuration on the broker level for that stream. This gives the client a lot of flexibility for stream configuration and usage.

Implementation details

The idea is to add a new section in internal.pb.proto of the server for stream level configuration.

// Internal Protocal CustomStreamConfig
message NullableInt64 {
    int64 value = 1;
}

message NullableInt32 {
    int32 value = 1;
}

message NullableBool {
    bool value = 1;
}

message CustomStreamConfig  {
    NullableInt64     RetentionMaxBytes     = 1;
    NullableInt64     RetentionMaxMessages  = 2;
    NullableInt64     RetentionMaxAge       = 3;
    NullableInt64     CleanerInterval       = 4;
    NullableInt64     SegmentMaxBytes       = 5;
    NullableInt64     SegmentMaxAge         = 6;
    NullableInt32     CompactMaxGoroutines  = 7;
    NullableBool      CompactEnabled        = 8;
}

And then enrich CreateStreamRequest

message NullableInt64 {
    int64 value = 1;
}

message NullableInt32 {
    int32 value = 1;
}

message NullableBool {
    bool value = 1;
}

// CreateStreamRequest is sent to create a new stream.
message CreateStreamRequest {
    string                  subject              = 1; // Stream NATS subject
    string                  name                 = 2;  // Stream name (unique per subject)
    string                  group                = 3;  // Partitions NATS subject amongst group members
    int32                   replicationFactor    = 4;  // Number of stream replicas
    int32                   partitions           = 5;  // Number of stream partitions
    NullableInt64           RetentionMaxBytes    = 6;  // The maximum size a stream's log can grow to, in bytes.
    NullableInt64           RetentionMaxMessages = 7;  // The maximum size a stream's log can grow to, in messages
    NullableInt64           RetentionMaxAge      = 8;  // The TTL for stream log segment files
    NullableInt64           CleanerInterval      = 9;  // The frequency to check for log cleaner
    NullableInt64           SegmentMaxBytes      = 10; // The maximum size of a single stream log segment file in bytes
    NullableInt64           SegmentMaxAge        = 11; // The maximum time before a new stream log segment is rolled out
    NullableInt32           CompactMaxGoroutines = 12; // The maximum number of concurrent goroutines to use for compaction on a stream log
    NullableBool            CompactEnabled       = 13; // CompactEnabled controls compaction for a stream.
}

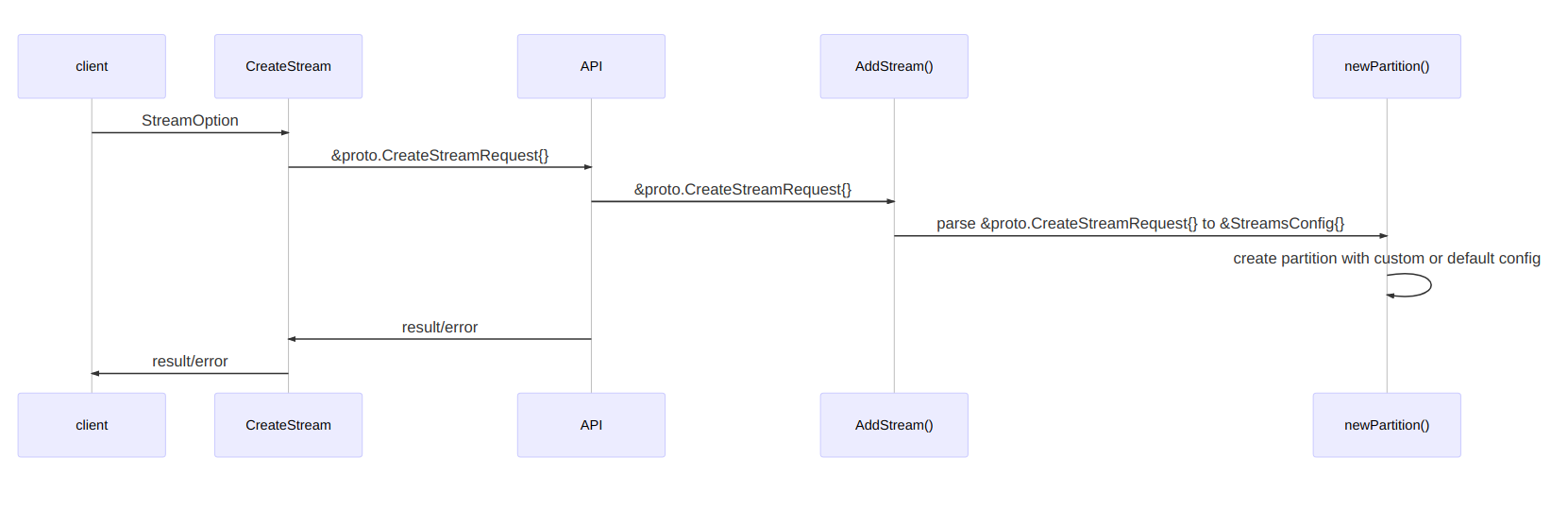

On the API level, the api shall parse the custom stream configuration from proto.request to set the configuration properly upon stream's partition creation. Default value (set on broker levels) will be used in case these values are unset upon CreateStream request .

Summaries of notable changes:

• signature of metadata/addPartition now changes:

func (m *metadataAPI) addPartition(stream *stream, protoPartition *proto.Partition, recovered bool, protoStreamsConfig *proto.CustomStreamConfig) error

• signature of partition/newPartition now changes to, which takes protoStreamConfig into account:

func (s *Server) newPartition(protoPartition *proto.Partition, recovered bool, protoStreamsConfig *proto.CustomStreamConfig) (*partition, error)

• in metadata/AddStream, before calling addPartition, it tries to parse the embedded custom stream config from protoStream

Notes on duration values.

All duration type is not supported due to complexity issue with google/protobuf.

As of know, duration configuration is used simple int64 as value and consider this value in millisecond time unit

Required

Required PRs:
api
go-client

[LaPetiteSouris]

Just update the PR description to give accurate context and implementation overview of the PR

[LaPetiteSouris]

Updated the description with detailed implementation , hope this help a bit in going through the PR.

[tylertreat]

Why do we do this on partition resume?

[LaPetiteSouris]

as (* server) newParition() signature changes to

func (s *Server) newPartition(protoPartition *proto.Partition, recovered bool, protoStreamsConfig *proto.CustomStreamConfig) (*partition, error)

so I have to pass nil here
