This is a Unit Testing framework for the DITA Open Toolkit. This DITA-OT Plug-in consists of seven DITA-OT transforms and an ANT library:

• Unit Testing
  • The unit-test transform allows a user to runs a sequence of dita commands and checks that the documents created match the expected output. This is useful for regression testing, and confirming that any custom plug-ins do not conflict when upgrading the base DITA-OT engine.
  • The resource/antlib.xml library offers a series of convenience methods for creating DITA-OT unit tests.
• Code Coverage
  • The token-report transform checks to see if a series of tokens representing all potential output values are covered by unit tests
  • The xsl-instrument transform annotates an DITA-OT plug-in to enable code coverage reporting
  • The xsl-deinstrument transform removes the instrumentation annotation from a specified plug-in
  • The xsl-report transform displays which templates have been invoked whilst running unit tests
• ANT Profiling
  • The antro transform runs an ANT script profiler against a specified transform and outputs a profiler JSON file
  • The antro.ui transform starts up the UI for the ANT script profiler, allowing a user to load a JSON file and interpret the results.

▶️ Video from DITA-OT Day 2018

The unit test framework plug-in has been tested against DITA-OT 4.x. It is no longer compatible with DITA-OT 2.x. and it is recommended that you upgrade to the latest version. The unit test framework plug-in relies on the use of AntUnit 1.4 to run tests and ANT jUnit to create a test report. ANT 1.8 or higher is required, although a later ANT version (1.9 or 1.10) is recommended.

The DITA-OT Unit Test Framework is a plug-in for the DITA Open Toolkit.

• Full installation instructions for downloading DITA-OT can be found here.

  1. Download the dita-ot-4.2.zip package from the project website at dita-ot.org/download
  2. Extract the contents of the package to the directory where you want to install DITA-OT.
  3. Optional: Add the absolute path for the bin directory to the PATH system variable.

  This defines the necessary environment variable to run the dita command from the command line.

curl -LO https://github.com/dita-ot/dita-ot/releases/download/4.2/dita-ot-4.2.zip
unzip -q dita-ot-4.2.zip
rm dita-ot-4.2.zip

• Run the plug-in installation command:

dita -install https://github.com/jason-fox/fox.jason.unit-test/archive/master.zip

The dita command line tool requires no additional configuration.

A series of test suites can be found within the plug-in at PATH_TO_DITA_OT/plugins/fox.jason.unit-test/sample

To run, use the unit-test transform.

PATH_TO_DITA_OT/bin/dita -f unit-test  -o out -i PATH_TO_UNIT_TESTS

Once the command has run, a test report file is created. Additionally, if any error occurs, the command will fail.

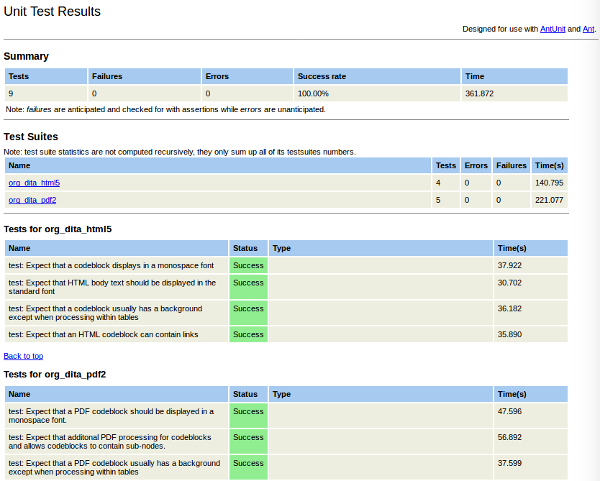

Sample Test Report This is the test report from the example tests found within the plug-in sample directory. Nine tests are run over two test suites (PDF and HTML processing) - a third test suite has been disabled.

• If the -i input directory is a test suite, all tests within the suite will be run.
• If the -i input directory is not a test suite, all test suites directly beneath that directory will be run.

To run a XSLT Coverage Report, each DITA-OT Plug-In must be instrumented - this annotates the XSLT templates within the plug-in to be able to generate coverage information. A copy of each *.xsl file is also saved with the *.orig suffix.

PATH_TO_DITA_OT/bin/dita -f xsl-instrument -i PATH_TO_PLUG_IN

To revert back to the original files just run the de-instrument transform as shown:

PATH_TO_DITA_OT/bin/dita -f xsl-instrument -i PATH_TO_PLUG_IN

Once a Plug-In has been instrumented the test suite should contain a template-coverage.xml file which holds a list of all template decision points. To obtain coverage information, use the unit-test transform as stated previously:

PATH_TO_DITA_OT/bin/dita -f unit-test -i PATH_TO_UNIT_TESTS

• If the -i input directory is a test suite, XSL coverage for that test suite will be reported.
• If the -i input directory is not a test suite, XSL coverage for all test suites directly beneath that directory will be reported.

Once the command has run, both a test report file and an XSL coverage report file are created. Additionally, if any error occurs, the command will fail.

It is also possible to run XSL coverage over a single test. An individual test can be run directly from the command line by running the default target within that test. This can be followed by direct invocation of the coverage report

ant -f PATH_TO_PLUGIN/test/TEST_NAME/build.xml
PATH_TO_DITA_OT/bin/dita -f xsl-report -i PATH_TO_PLUGIN

The XSL coverage report will show a schematic of all template decision points, with covered lines displayed in green, and uncovered lines displayed in red.

This is a quicker alternative report to XSLT instrumentation and code coverage, but it requires the developer to create the token coverage.xml file manually. Each test suite should contain a coverage.xml file which holds a series of tokens representing all potential output values. To obtain coverage information, use the test-coverage transform.

PATH_TO_DITA_OT/bin/dita -f token-report -i PATH_TO_UNIT_TESTS

Once the command has run, a coverage report is created

This is the token report from the example tests found within the plug-in sample directory.

• Coverage for the Spell-checker is looking to ensure that all rules have been run. Uncovered rules are highlighted in RED.
• Coverage for HTML processing is looking for the presence of <codeph>, <codeblock> and <p> tags being rendered in the tests.

• If the -i input directory is a test suite, coverage for that test suite will be reported.
• If the -i input directory is not a test suite, coverage for all test suites directly beneath that directory will be reported.

Antro is a hierarchical and line-level profiler for Ant build scripts. It can be run to check which ANT scripts have been invoked and how long they took.

To obtain profile information, use the antro transform and supply an additional test transtype

PATH_TO_DITA_OT/bin/dita -f antro --test.transform=TRANSFORM_TO_PROFILE -i document.ditamap

A profiler JSON file will be generated.

To run the UI for the Antro profiler, use the antro-ui transform. The -i parameter is mandatory for all DITA-OT plug-ins, and should point to a real file, but is not used for this transform.

PATH_TO_DITA_OT/bin/dita -f antro-ui -i document.ditamap

The Antro UI is the displayed, load the profiler json file from to display a bar graph showing how long each ANT target took:

Sample Antro Display The Profiler was run against the pdf transform, FOP processing took 16s

You can drill down to an individual line to see if it has been invoked and how long it took:

• test.copy - Specifies whether regenerated expectations should be copied. Default is false
• test.transtype - The real transtype to run the antro profiler against
• test.propertyfile - A properties file to use when running the unit tests or antro profiler

GitHub Actions are a CI/CD environment integrated directly with GitHub. More information about how to set up GitHub Actions can be found on the GitHub website

A GitHub Action has been created to automate your DITA-OT Plugin testing. To add automated CI/CD testing of your DITA-OT plug-ins, place your tests under a test directory under the root of the repository along with the ci.yml in the .github/workflows directory.

name: CI
'on':
  push:
    branches:
      - master
  pull_request:
    branches:
      - master
jobs:
  unit-test:
    name: Unit Tests
    runs-on: ubuntu-latest
    steps:
      - name: Git checkout
        uses: actions/checkout@v2
      - name: Run DITA-OT Unit Test
        uses: jason-fox/dita-unit-test-action@master
        with:
          plugin: 'com.oxygenxml.editlink'

• plugin - Required The name of the DITA-OT plugin to install and test.
• setup-script - The name of an optional bash script to run to install any dependencies prior to run the test. Defaults to test-setup.sh if not supplied.
• prerequisites - Comma separated list of additional DITA-OT plugins to install prior to installing the plugin under test.

Travis CI is a hosted, distributed continuous integration service used to build and test software projects hosted at GitHub. More information about how to set up Travis integration can be found on the Travis website.

For automated testing of DITA-OT plug-ins, place your tests under a test directory under the root of the repository along with the .travis.yml in the root itself.

For example to test against DITA-OT 3.4.1 use the following .travis.yml:

language: java
jdk:
    - oraclejdk8
env:
    - DITA_OT=3.4.1

before_install:
    - zip -r PLUGIN-NAME.zip . -x *.zip* *.git/* *temp/* *out/*
    - curl -LO https://github.com/dita-ot/dita-ot/releases/download/$DITA_OT/dita-ot-$DITA_OT.zip
    - unzip -q dita-ot-$DITA_OT.zip
    - mv dita-ot*/ dita-ot/
    - chmod +x dita-ot/bin/dita

install:
    - dita-ot/bin/dita install https://github.com/jason-fox/fox.jason.unit-test/archive/master.zip
    - dita-ot/bin/dita install PLUGIN-NAME.zip

script:
    - dita-ot/bin/dita --input dita-ot/plugins/PLUGIN-NAME -f unit-test -v

This will do the following:

• Zip up the files in the plug-in under test
• install the specified DITA-OT version
• install the unit-testing framework (repeat this for other dependencies)
• install the plug-in under test
• Run the tests

Unit tests will be run whenever a commit occurs.

The output will appear within the log as follows:

[UNIT002I][INFO] Running tests for 'PLUGIN-NAME'
  [antunit] Build File: /tmp/temp20180420185923919/unit-test/fixtures/PLUGIN-NAME/fixture.xml
  [antunit] Tests run: 3, Failures: 0, Errors: 0, Time elapsed: 31.063 sec
  [antunit] Target: test:    Expect that ...  took 7.202 sec
  [antunit] Target: test:    Expect that ...  took 17.596 sec
...etc

[SUCCESS] All tests have passed
dita2unit-test:
clean-temp:
The command "dita-ot/bin/dita --input dita-ot/plugins/PLUGIN-NAME -f unit-test -v" exited with 0.

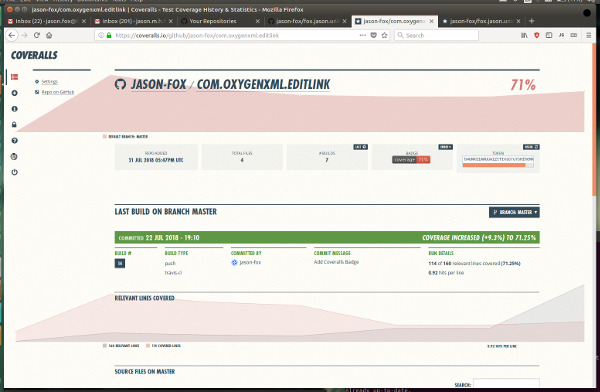

Coveralls is a web service to help you track your code coverage over time, and ensure that all your new code is fully covered. More information about how to set up Coveralls-Travis integration can be found on the Coveralls website.

If a plug-in has been instrumented (using the xsl-instrument transform) and unit tests are run, a Cobertura style coverage.xml file will be created along with the test results and a coverage report. This can be forwarded to Coveralls using the standard maven plug-in as shown:

language: java
jdk:
    - oraclejdk8
env:
    - DITA_OT=3.4.1

before_install:
    - zip -r PLUGIN-NAME.zip . -x *.zip* *.git/* *temp/* *out/*
    - curl -LO https://github.com/dita-ot/dita-ot/releases/download/$DITA_OT/dita-ot-$DITA_OT.zip
    - unzip -q dita-ot-$DITA_OT.zip
    - chmod +x dita-ot-$DITA_OT/bin/dita

install:
    - dita-ot-$DITA_OT/bin/dita install https://github.com/jason-fox/fox.jason.unit-test/archive/master.zip
    - dita-ot-$DITA_OT/bin/dita install PLUGIN-NAME.zip

before_script:
    - dita-ot-$DITA_OT/bin/dita --input dita-ot-$DITA_OT/plugins/PLUGIN-NAME -f xsl-instrument

script:
    - dita-ot-$DITA_OT/bin/dita --input dita-ot-$DITA_OT/plugins/PLUGIN-NAME -f unit-test --output . -v

after_success:
    - cp dita-ot-$DITA_OT/plugins/fox.jason.unit-test/resource/pom.xml pom.xml
    - mvn clean org.eluder.coveralls:coveralls-maven-plugin:report

The unit tests are organized in the following manner:

├── test-suite-A
│   └── test
│       ├── unit-test-1
│       ├── unit-test-2
│       ├── ... etc
│       ├── bootstrap.xml
│       └── coverage.xml
│
├── test-suite-B
│   └── test
│       ├── unit-test-1
│       ├── unit-test-2
│       ├── ... etc
│       ├── bootstrap.xml
│       └── coverage.xml

Each suite of tests (identified by a directory called test) can be found in a separate directory. Each test within the suite can be found in a separate sub-directory. A coverage.xml file should be added to each test suite to enable the framework to calculate coverage.

This structure means that an integration test of multiple plug-ins can be run by adding a test directory to each plug-in and invoking the tests as shown:

PATH_TO_DITA_OT/bin/dita --input ./plugins -f unit-test

At the root of the tests lies a bootstrap.xml file which references the antlib.xml library as shown:

<project name="bootstrap.unit-test">
  <dirname property="test.root.dir" file="${ant.file.bootstrap.unit-test}/.." />
  <property name="dita.dir" location="PATH_TO_DITA_OT"/>
  <typedef file="${dita.dir}/plugins/fox.jason.unit-test/resource/antlib.xml"/>
</project>

• The location of test.root.dir must be set - this allows the expectation of a single test to be updated directly from the command line independently of the test harness.
• The location of dita.dir must be set - this allows a single test to be run directly from the command line independently of the test harness.
• The functions from the unit-test antlib.xml must be loaded using the <typedef> task.

A token coverage file consists of a list of XML elements or string literals which should be present in a test-suite's outputs. For example, PDF tests should cover all possible fop element and attributes.

<package name="org.dita.pdf2">
  <lines>
    <line id="plain-text">font-family="STANDARD"</line>
    <line id="monospace-text">font-family="MONOSPACE"</line>
  </lines>
  <elements>
    <element id="codeblock">fo:block font-family="MONOSPACE"</element>
    <element id="codeph-tt">fo:inline font-family="MONOSPACE"</element>
    <element id="colspec">fo:table-column</element>
    <element id="colspec-width">fo:table-column column-width</element>
  </elements>
</package>

An XSL coverage file consists of a list of XSL elements which are present within a plug-in. This file is generated by the xsl-instrument transform

<package name="fox.jason.unit-test">
   <classes>
      <class name="xsl/order" filename="xsl/order.xsl">
         <lines>
            <line id="d6e3:xsl/order.xsl"
                  element="xsl:template"
                  open="true"
                  indent="1"
                  branch="false"
                  attributes="match=&#34;/&#34;"
                  number="13">d6e3:xsl/order.xsl</line>
            <line id="d6e3:xsl/order.xsl"
                  element="xsl:apply-templates"
                  open="true"
                  indent="2"
                  branch="false"
                  attributes="select=&#34;//failed-assert&#34;"
                  number="19"/>

If a disabled.txt file is present within a test suite directory, none of the tests within the directory will be run.

The cfg directory of the plug-in holds standard lists of fonts, colors and attributes to replace when running PDF tests - this can be overridden by individuals test or test suites if necessary by placing an equivalent override file in the test directory or test-suite directory.

Additional test properties can be passed to DITA-OT when each test is run if a test.properties file is present in the test directory or test-suite directory. The name of the file to search for can also be altered. See Setting build parameters with .properties files for more details.

Each unit test is organized in the following manner:

├── build.xml
├── document.ditamap
├── expected.html
├── test.properties (optional)
└── topics
    └── *.dita files

• An ANT build.xml file to invoke the test
• A document.ditamap referring to the individual *.dita files
• An optional test.properties file if passing any additional properties to DITA-OT
• A test expectation (usually called expected.html or expected.fo)
• Any further *.dita files or source files, graphics etc. required for the test.

The build.xml must consist of a single default target, and import the bootstrap.xml file as shown. The description is used within the test report.

<project basedir="." default="unit-test">
  <import file="../../bootstrap.xml"/>
  <description>
    Body text should be displayed in the standard font
  </description>
  <target name="unit-test">
      <exec-html5/>
      <get-html-article from="topics/body-text.html"/>
      <compare-output suffix=".html"/>
  </target>
</project>

• An individual test can be run directly from the command line by running the default target.
• Adding the comment <!-- @disabled --> within the build.xml file will disable a test

The following ANT tasks are available from the DITA-OT Unit Test Framework

Fail the test if the test output file does not match the expectation file

<compare-output/>

compares the file out/fragment.fo with expected.fo and fails if they do not match.

<compare-output suffix=".html"/>

compares the file out/fragment.html with expected.html and fails if they do not match.

<compare-output suffix=".svrl" expectation="expected.svrl.win" os="windows"/>

if running on a Windows system, compares the file out/fragment.svrl with expected.svrl.win and fails if they do not match.

if running on a UNIX system, no comparison is made.

Fail the test if the log from the test does not contain the given string

<contains-text expected="Lorem Ipsum"/>

compares the output of DITA-OT and fails if the text "Lorem Ipsum" cannot be found

<contains-text expected="This is running on Windows" os="windows"/>

if running on a Windows system, compares the output of DITA-OT and fails if the text "This is running on Windows" cannot be found

if running on a UNIX system, no comparison is made.

Execute the HTML5 DITA-OT transform in verbose mode The test will fail if the result was not as expected or took too long

<exec-html5 transtype="custom-html"/>

runs DITA-OT using the custom-html HTML transtype. the output will be placed in the /out/html directory

Execute the PDF DITA-OT transform in verbose mode

<exec-pdf transtype="custom-pdf"/>

runs DITA-OT using the custom-pdf PDF transtype. topic.fo and document.pdf will be placed in the /out directory

Execute the HERE Validator SVRL DITA-OT transform in verbose mode. The test will fail if the result was not as expected or took too long.

<exec-svrl transtype="text-rules"/>

runs DITA-OT using the text-rules SVRL transtype

<exec-svrl transtype="svrl-echo" expectedresult="1"/>

runs DITA-OT using the svrl-echo SVRL transtype - the invocation is expected to fail with validation errors.

Execute an arbitrary DITA-OT transform in verbose mode. The test will fail if the result was not as expected or took too long.

<exec-svrl transtype="custom"/>

runs DITA-OT using the custom transtype

<exec-svrl transtype="custom" expectedresult="1"/>

runs DITA-OT using the custom SVRL transtype - the invocation is expected to fail.

Loads a given HTML file and extracts the first <article> element (which corresponds to a DITA topic) for further examination.

<get-html-article from="topics/body-text.html"/>

creates a file called fragment.html holding the <article> element from the topics/body-text.html file.

Loads a given topic.fo file and extracts the last fo.flow element (which corresponds to a DITA topic) for further examination. Also remove colors, fonts and excess attributes

<get-pdf-article/>

creates a file called fragment.fo holding the final <fo.flow> element from the topics.fo file.

PRs accepted.

Apache 2.0 © 2018 - 2024 Jason Fox

The Program includes the following additional software components which were obtained under license:

• ant-antunit.jar - https://ant.apache.org/antlibs/antunit/ - Apache 2.0 license
• ant-contrib.jar - http://ant-contrib.sourceforge.net/ - Apache 2.0 license
• ant-junit.jar - https://ant.apache.org/ - Apache 2.0 license
• Saxon-9.1.0.8.jar - http://saxon.sourceforge.net/ - Mozilla Public license 1.0
• Saxon-9.1.0.8-dom.jar - http://saxon.sourceforge.net/ - Mozilla Public license 1.0
• xmltask.jar - http://www.oopsconsultancy.com/software/xmltask/ - Apache 1.1 license
• antro.jar - https://github.com/jkff/antro/ - Gnu General Public License 3
• swingx-2008_03_09.jar - http://swingx.dev.java.net/ - Gnu General Public License 3
• json.jar- http://www.json.org/ - Gnu General Public License 3
