Add Rav4 Prime Fingerprint F/W versions #2018
Conversation
|
Can you add the RAV4 prime to the README? |
|
Added. Though I want to noted that testing of Rav4 Prime won't come until matty#8553 gets a C2 setup going. matty#8553 temporarily hooked up an EON that will be on sale or traded in to get the FPv2 in a bit early. |
|
Changed to draft per @VirtuallyChris |
https://discordapp.com/channels/469524606043160576/524327905937850394/742873694036295763 matty#8553 197bedf171765156|2020-08-11--16-59-52
nelsonjchen
force-pushed
the
rav4_prime_fw
branch
from
94a0811 to
640ae8b
Compare
|
matty#8553 now has a C2 and is now on this branch but doesn't have a usable USB-C cable 😅 to test with. https://discordapp.com/channels/469524606043160576/524327905937850394/747673503976783963 When matty#8553 gets the cable, we'll provide an update. |
|
Matty got comma's cable plugged in, but a CAN error pops up. https://discordapp.com/channels/469524606043160576/524327905937850394/748711516663971901 The car firmwares are still the same and the prime is running OP that identifies this vehicle as a Rav 4 2019 Hybrid. Also, the new C2 and the route I looked at the log on is: 54bb533aec9ff844|2020-08-27--17-33-33 |
|
|
|
matty will try his setup on another toyota sometime and see if the issue is hardware. If he can't find someone, I'll be in ~LA next next week. |
|
today's log: https://discordapp.com/channels/469524606043160576/524327905937850394/749378031411527781 We tried Matty's setup on another Rav4. Things seem to work fine. Other RAV4 (non-Prime): 54bb533aec9ff844|2020-08-29--14-12-21 . VIN ends in KD524915 We moved it back to the Rav4 Prime. The CAN Error came up again. Matty set me up for sshing into his Comma 2. I saw this in tmux. When the vehicle is off, things calm down dramatically I looked into Discord to see what to do about the I found this post from vanillagorilla talking about a similar issue in discord: https://discordapp.com/channels/469524606043160576/524327905937850394/610127435698143270 We'll look into what might be up with the DBC and checksum stuff next Saturday when I'm in LA. gah, this was supposed to be a simple fingerprint but getting it to work on the fastest real toyota is gonna be awesome! |
|
The |
|

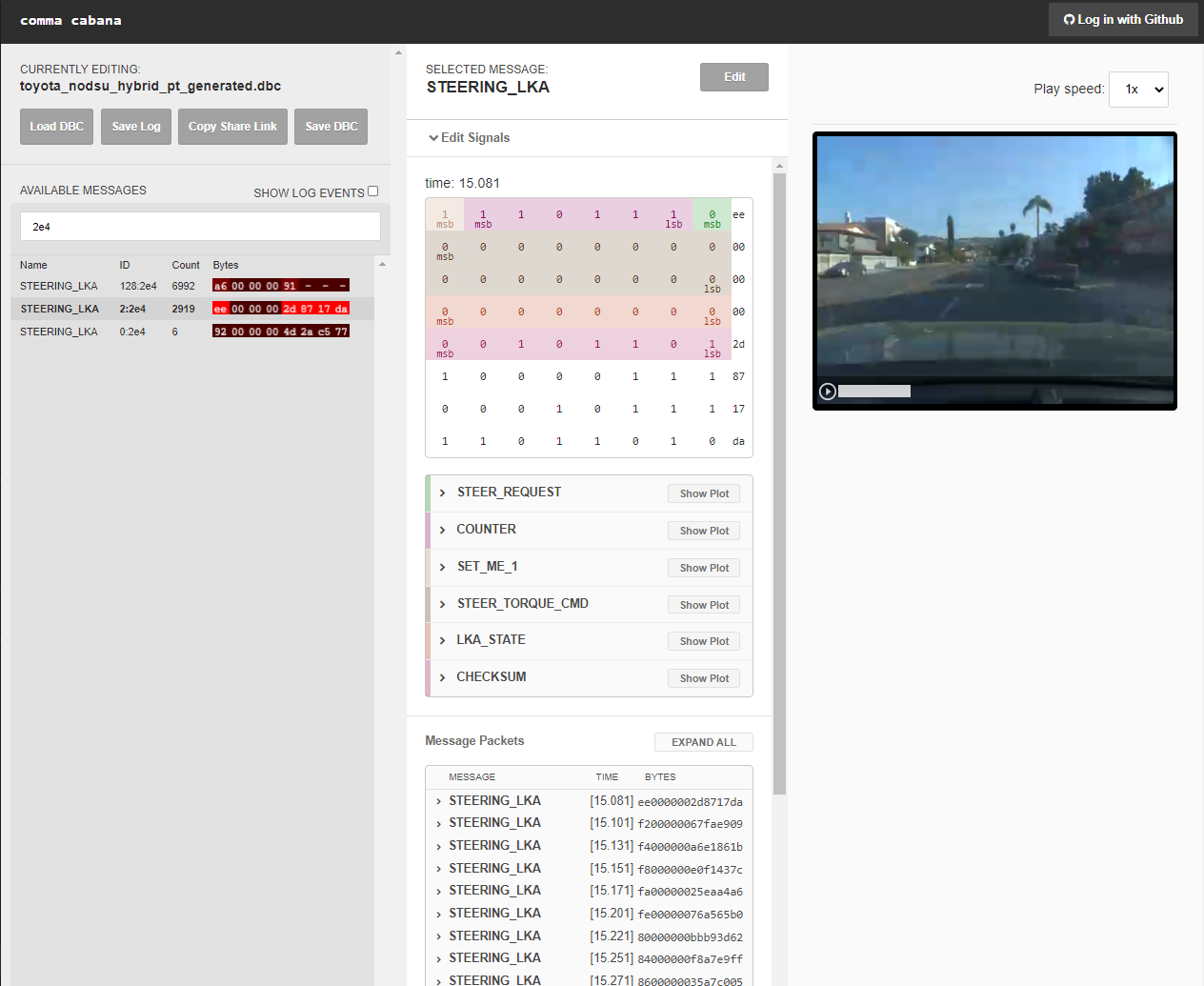

The checksum area doesn't seem to be a single byte now. Ick, I think this is going beyond a fingerprint now and might be worthy of opening an issue up by itself. |
|
#2103 seems to show a new checksum for Toyota steering and pre collision that is currently unknown and there is much more work than a simple fingerprint. With the checksum, the 2021 Rav4 Prime definitely does not talk steering and pre-collision like a Rav4 Hybrid so categorizing it as a Rav4 Hybrid also is incorrect. Perhaps a future version of OP may support the new Toyota checksum and a future PR for Rav4 Primes may reference the firmware versions mentioned here. Until then, I will close this PR to remove an unactionable PR from the list of open PRs. |
|
Anyone tried this with the C3? |
I did with a C3 far later, like a year later on matty#8553's Rav4 Prime. No, it doesn't magically solve the security key / can message signing issue. https://github.com/commaai/openpilot/discussions/19932 |
|
Was not thinking it was magic. Just that perhaps in the last two years someone might have added it in a PR I can't find :) |
|
Fascinating discussion. Thanks! |
|
I just purchased a RAV4 Prime and purchased a Comma 3 in the hopes of improving its lane keeping ability. Is there any hope that the Comma 3 will work in a 2023 RAV4 Prime? |
The status summary is here: |
