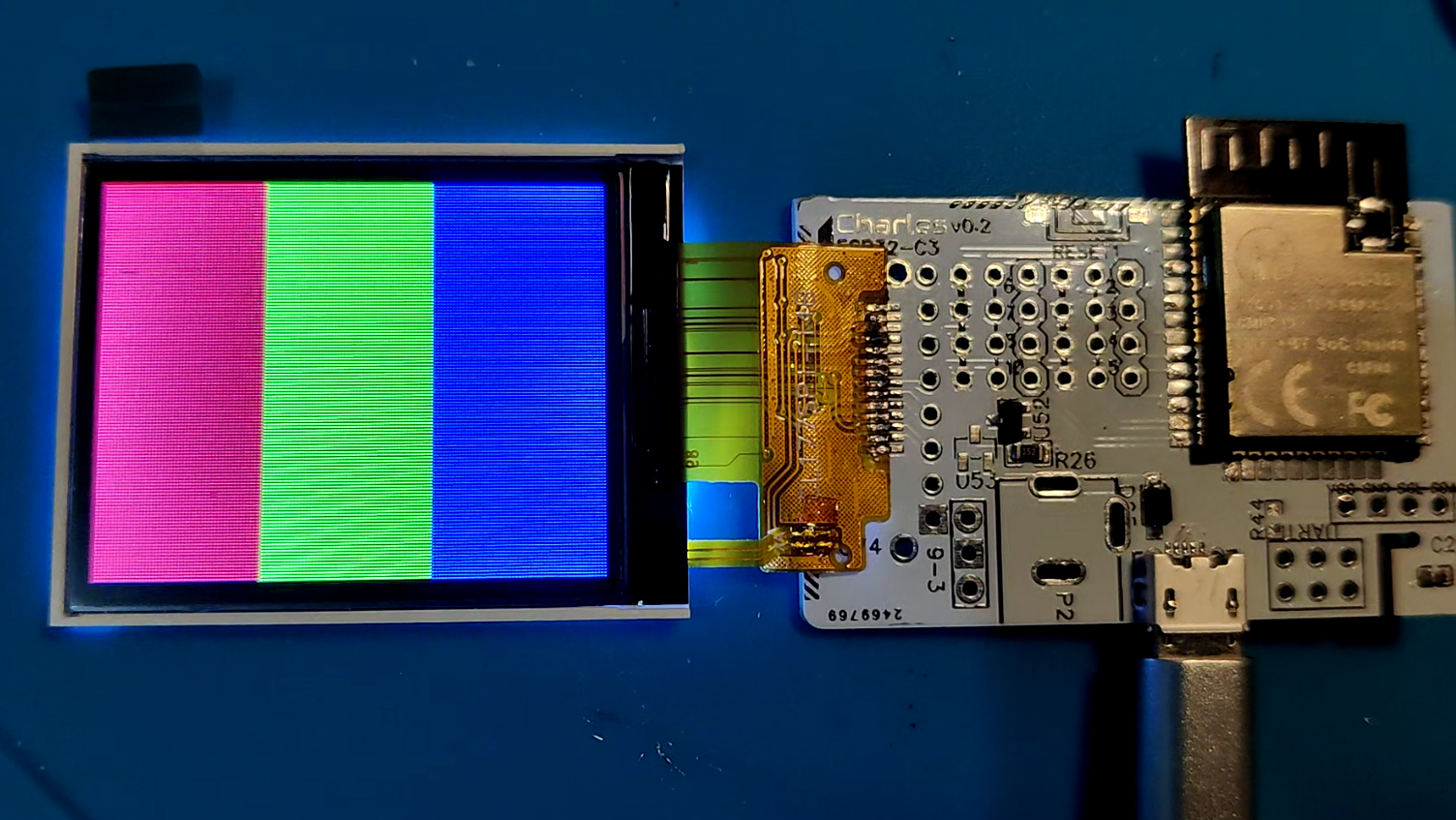

modify version for custom ESP32-C3 and CTC 1.77"LCD

image image

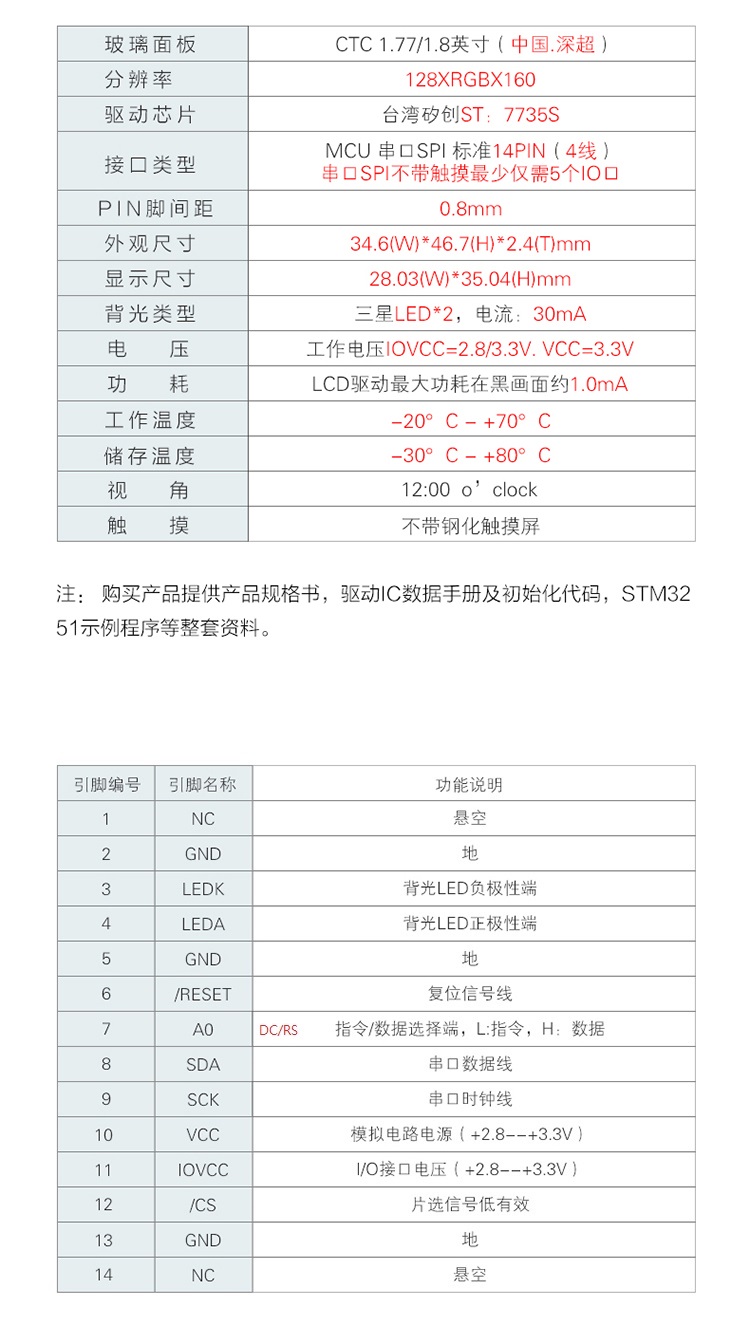

LCD PIN

O1CN011STAQQREmrhQFyU_!!1746212247

Upstream content

How to build

git clone https://github.com/nopnop2002/esp-idf-m5stickC
cd esp-idf-m5stickC/
idf.py set-target esp32
idf.py menuconfig
idf.py flash -b 115200 monitor

*There is no MENU ITEM where this application is peculiar.

You need to specify Baud rate for flashing.

Graphic support

M5StickC-3

M5StickC-4

M5StickC-5

M5StickC-8

Fonts support

It's possible to text rotation and invert.
M5StickC-6

M5StickC-7

It's possible to indicate more than one font at the same time.
Gothic Font.
M5StickC-9

Mincyo Font.
M5StickC-10

Font File

You can add your original font file.
The format of the font file is the FONTX format.
Your font file is put in font directory.
Your font file is uploaded to SPIFFS partition using meke flash.

Please refer this page about FONTX format.

FontxFile yourFont[2];
InitFontx(yourFont,"/spiffs/your_font_file_name","");
uint8_t ascii[10];
strcpy((char *)ascii, "MyFont");
lcdDrawString(dev, yourFont, x, y, ascii, color);
