core: cable-guy: More than one IP address

[rafaellehmkuhl]

Before this patch, cable-guy was only able to handle one address per ethernet interface. This was leading to issues like the user only being able to see one IP address on the frontend (even when the interface had multiple), which could cause some misunderstood.

With this patch, the user is now able to:

• See multiple IP addresses associated with each ethernet interface
• Add new IP addresses to a given interface
• Remove specific IP addresses from a given interface

Also, some error messages were made more clear, raises were added where necessary and logs from settings are now done with loguru.

Fix #428

[patrickelectric]

Is there a docker ?

[rafaellehmkuhl]

Is there a docker ?

Yup, same same as the branch

[patrickelectric]

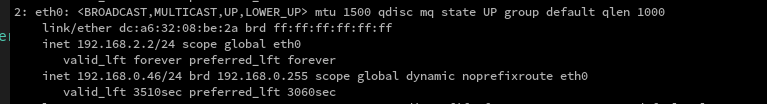

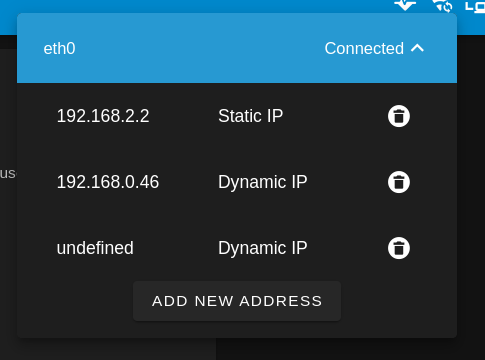

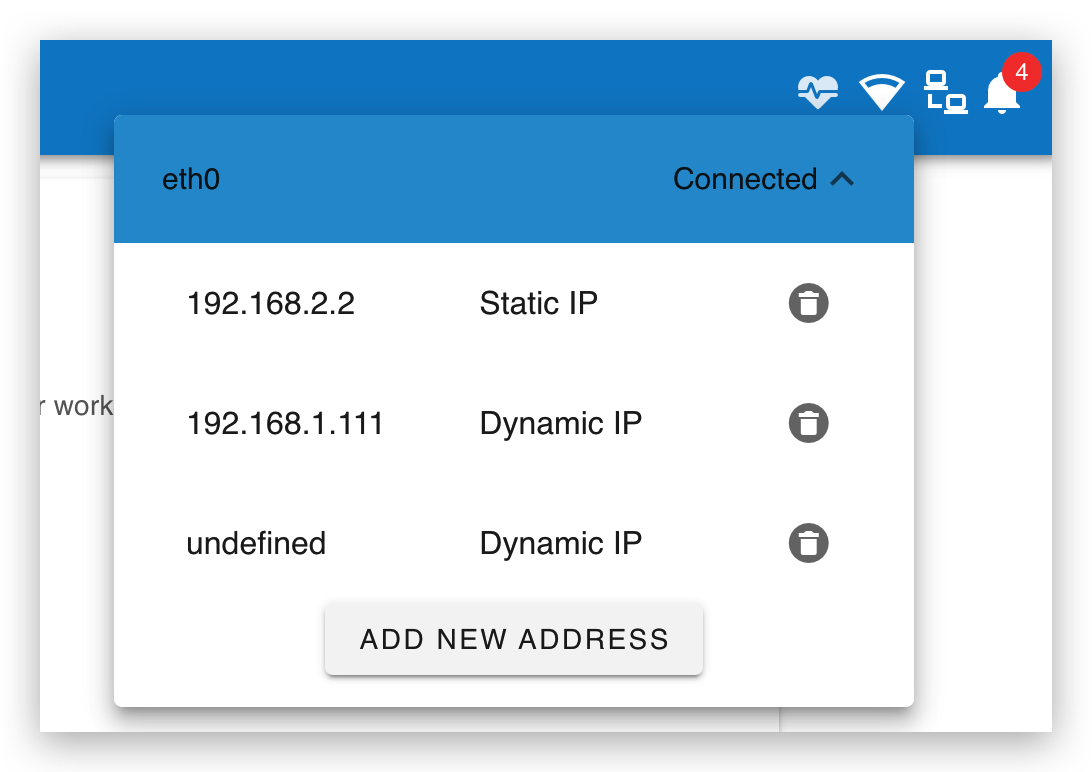

It's showing three IP blocks, but eth0 here only have 2

[
  {
    "name": "eth0",
    "addresses": [
      {
        "ip": "192.168.2.2",
        "mode": "unmanaged"
      },
      {
        "ip": "192.168.0.46",
        "mode": "client"
      },
      {
        "ip": "undefined",
        "mode": "client"
      }
    ],
    "info": {
      "connected": true,
      "number_of_disconnections": 6
    }
  }
]

• It's appears possible to set a server DHCP, from the options but nothing happens.
• When deleting an IP configuration, it still shows for a couple of seconds after finishing the update on the UI.

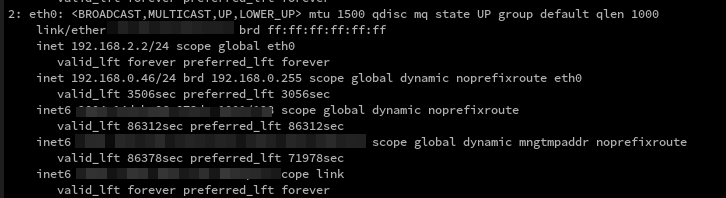

When creating a new dynamic IP, more 3 IPs appears as IPv6 here.

[Williangalvani]

this looks a bit odd. is it here only you make sure the interface is valid? if so I'd add a comment

[rafaellehmkuhl]

It is, yes. Will add a comment.

[rafaellehmkuhl]

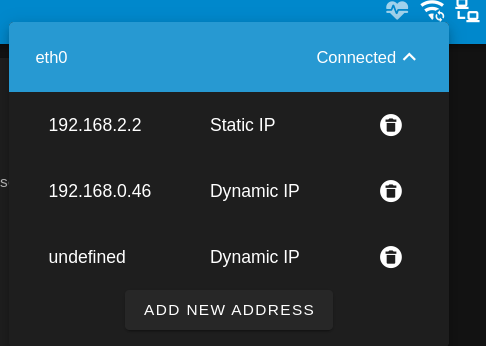

It's showing three IP blocks, but eth0 here only have 2

[
  {
    "name": "eth0",
    "addresses": [
      {
        "ip": "192.168.2.2",
        "mode": "unmanaged"
      },
      {
        "ip": "192.168.0.46",
        "mode": "client"
      },
      {
        "ip": "undefined",
        "mode": "client"
      }
    ],
    "info": {
      "connected": true,
      "number_of_disconnections": 6
    }
  }
]

• It's appears possible to set a server DHCP, from the options but nothing happens.
• When deleting an IP configuration, it still shows for a couple of seconds after finishing the update on the UI.

When creating a new dynamic IP, more 3 IPs appears as IPv6 here.

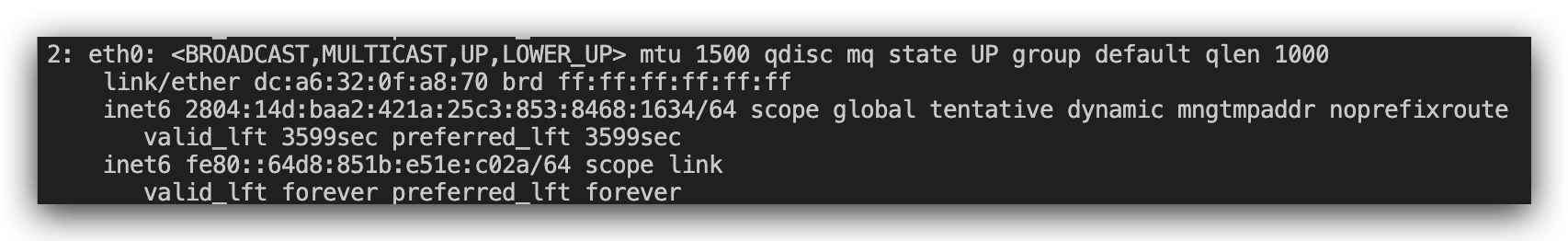

About the IPV6 behavior, I made some tests and came to see that this is the behavior we already have in master, which makes sense, since we don't have anything blocking IPV6 or something like that (we just don't add them to our interface models):

About deleting an IP and it staying there, it is a behavior we have in all frontend managers. Basically we put the component in an "updating" state when a change was made, and the next fetch will put update the data and put it in a "not-updating" state. The problem happens when a fetch initiates, a change occurs, and the fetch completes after the change but with the old data. There are multiple solutions to that and we should discuss on what is the behavior we want, blueos-wise (same behavior for all services).

I'm opening an issue to discuss that.

About the DHCP server issue, that's a bug indeed. As we already have the 192.168.2.2 IP there, when we set a DHCP server (which uses the same IP), it should remove the old one and add the new, but was not doing that. Fixed.

[patrickelectric]

About the IPV6 behavior, I made some tests and came to see that this is the behavior we already have in master, which makes sense, since we don't have anything blocking IPV6 or something like that (we just don't add them to our interface models):

This was happening when adding a new dynamic IP with this patch, 3 more IP interfaces appears, and not one.

[rafaellehmkuhl]

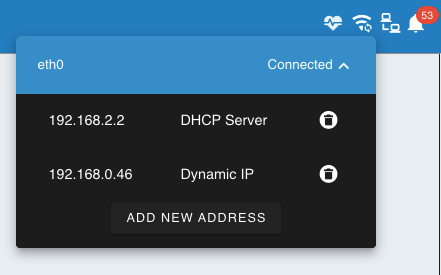

Image updated with proper fixes.

[patrickelectric]

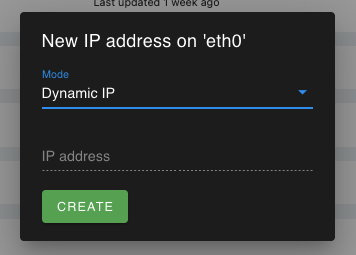

Its failing to change to dynamic IP:

The first link does not change to dynamic or a new dynamic is not added.
If we only support a single dynamic ip, we should remove the dynamic IP option and server option if they are already available.

[rafaellehmkuhl]

Its failing to change to dynamic IP:

The first link does not change to dynamic or a new dynamic is not added. If we only support a single dynamic ip, we should remove the dynamic IP option and server option if they are already available.

Yes. I'm aiming with this patch to just support multiples IPs, but not change the manager behavior. I have a patch for the sequence that will do some behavior changes to make it clear to the user what's happening. Basically I changed the DHCP and Dynamic IP creation for a button allowing enabling/disabling DHCP server, as we support only one, and another button to "re-trigger" dynamic IP instead of "adding", as we don't control how many and which IPs the external DHCP server will send.
