[Bug] 柱状图在横轴为时间时，无法按照时间正常堆叠

[Sorakado-Aoo]

Version

5.3.1

Link to Minimal Reproduction

No response

Steps to Reproduce

在5.2.2中正常，5.3.0之后异常
示例option

option = {
  title: { left: 'center' },
  color: [
    '#F73809',
    '#0909F7',
    '#09F7F7'
  ],
  toolbox: { right: 30, feature: { saveAsImage: {} } },
  tooltip: { trigger: 'axis' },
  legend: {
    show: true,
    padding: [10, 50],
    data: [
      'bar1',
      'bar2',
      'bar3'
    ]
  },
  grid: { left: '6%', right: '6%', bottom: '12%', containLabel: true, top: 40 },
  xAxis: {
    type: 'time',
    minInterval: 86400000,
    splitLine: { show: false },
    axisLabel: { rotate: 0 }
  },
  yAxis: {
    scale: true,
    type: 'value',
    axisLabel: { formatter: '{value} kWh' },
    min: 0,
    max: null
  },
  series: [
    {
      name: 'bar1',
      type: 'bar',
      stack: 'one',
      data: [
        ['2020/03/09', 2.498],
        ['2020/03/10', 0.501]
      ]
    },
    {
      name: 'bar2',
      type: 'bar',
      stack: 'one',
      data: [['2020/03/10', 0.827]]
    },
    {
      name: 'bar3',
      type: 'bar',
      stack: 'one',
      data: [['2020/03/10', 0.814]]
    }
  ]
};

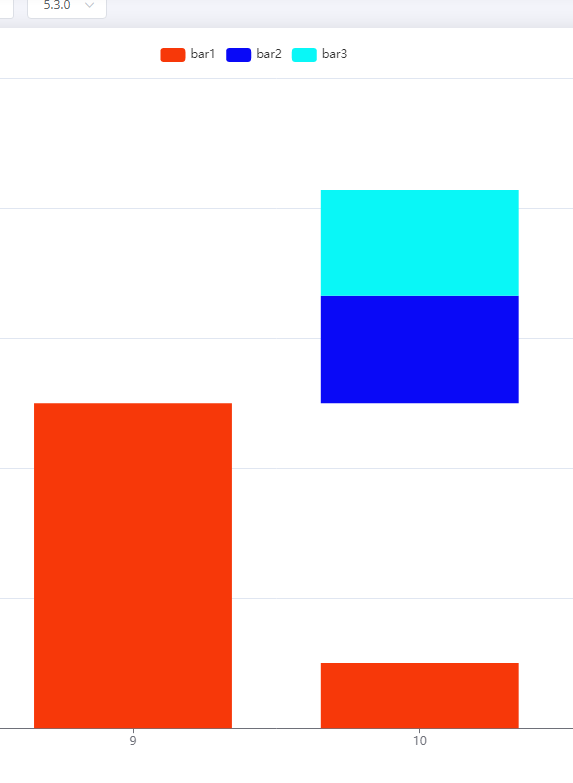

Current Behavior

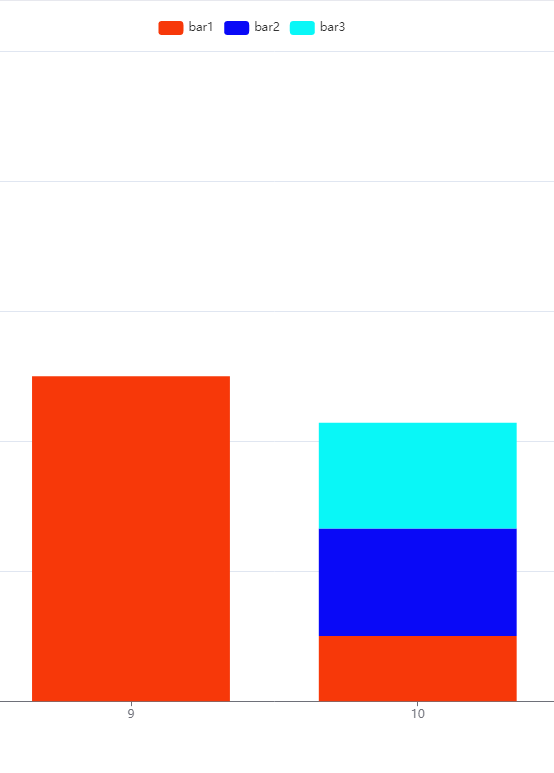

Expected Behavior

Environment

- OS:
- Browser:
- Framework:

Any additional comments?

No response

[echarts-bot]

@Sorakado-Aoo It seems you are not using English, I've helped translate the content automatically. To make your issue understood by more people and get helped, we'd like to suggest using English next time. 🤗

TRANSLATED

TITLE

[Bug] When the horizontal axis is time, the histogram cannot be properly stacked according to time

[jiawulin001]

Problem locating

In one sentence, Echarts is stacking value by index, not by name.
Both 5.2.x and 5.3.x deal with stack data here and put it in storage:

echarts/src/processor/dataStack.ts

Lines 123 to 139 in 3961cef

	if (stackedDataRawIndex >= 0) {
	const val = stackInfo.data.getByRawIndex(
	stackInfo.stackResultDimension, stackedDataRawIndex
	) as number;
	// Considering positive stack, negative stack and empty data
	if ((sum >= 0 && val > 0) // Positive stack
	|| (sum <= 0 && val < 0) // Negative stack
	) {
	// The sum should be as less as possible to be effected
	// by floating arithmetic problem. A wrong result probably
	// filtered incorrectly by axis min/max.
	sum = addSafe(sum, val);
	stackedOver = val;
	break;
	}
	}

However, stackedDataRawIndex is only decided by index of data. So if you have a hole in your stacked data, it will cause wrong stack.

Why it works in 5.2.x

The reason why no error occurs in 5.2.x is that it's using a completely new variable to store stack info instead of taking from storage. Check the variable lastStackCoords here:

echarts/src/layout/barGrid.ts

Line 445 in 000ee7d

export function layout(seriesType: string, ecModel: GlobalModel) {

This is no longer the case in 5.3.x.

Why it doesn't work in 5.3.x

Echarts now pick up stack data directly from storage and the 'stack-by-index' error is unveiled as long as there's a hole in stack data. Take a look at the new function in 5.3.x.

echarts/src/layout/barGrid.ts

Line 465 in 3961cef

export function createProgressiveLayout(seriesType: string): StageHandler {

So the 'stack-by-index' problem exists in BOTH version but the way to handle it changes in 5.3.x so the error pops up.

Update (5/19/2022)

It seems that the 'stack-by-index' is intentional for time axis. Check the code here:

echarts/src/data/helper/dataStackHelper.ts

Lines 120 to 124 in 6c793aa

	if (stackedDimInfo && !byIndex && !stackedByDimInfo) {
	// Compatible with previous design, value axis (time axis) only stack by index.
	// It may make sense if the user provides elaborately constructed data.
	byIndex = true;
	}

Value/Time axis data are all set to be using index to stack so it requires user to arrange data carefully. That means no 'holes' in data. This is designed for 'value'/'time' type axes so it's not a bug.
Again, USERS ARE REQUIRED TO PROVIDE ELABORATE DATA FOR TIME AXIS STACK!
