Hex Mid Panel with Manta Mounts #1061
Open
Conversation
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
|
Hi, thank you for submitting your PR. Added/Changed mods detected in this PR:
Tool check results overview:
Tool check results details:SUCCESS: ✅File checker
Markdown link checker
Readme generator
STL rotation checker
STL corruption checker
WARNING:
|
| Item | Result | Reason |
|---|---|---|
| MacBoy__Pro/Hex_Mid_Panel_w_Manta_Mounts/CAD/Hex_Mid_Panel_Manta.step | This file is larger than 2 MB! | |
| MacBoy__Pro/Hex_Mid_Panel_w_Manta_Mounts/images/installed.jpg | This file is larger than 2 MB! |
STL rotation checker
| Item | Result | Original orientation | Suggested orientation |
|---|---|---|---|

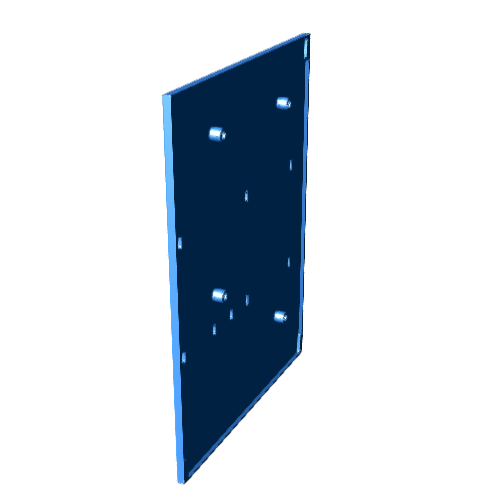

| Hex_Mid_Panel_Manta.stl |  |
 |
FAILURE: ❌
File checker
| Item | Result | Reason |
|---|---|---|
| MacBoy__Pro/Hex_Mid_Panel_w_Manta_Mounts/STLs/M5P Spacers.stl | ❌ FAILURE | This file-path contains illegal characters! |
Markdown link checker
| Item | Result | Reason |
|---|---|---|
| MacBoy__Pro/Hex_Mid_Panel_w_Manta_Mounts/README.md | ❌ FAILURE | Relative link 'STLs/M5P%20Spacers.stl' is invalid! |
| MacBoy__Pro/Hex_Mid_Panel_w_Manta_Mounts/README.md | ❌ FAILURE | Relative link 'STLs/M5P%20Spacers.stl' is invalid! |
| MacBoy__Pro/Hex_Mid_Panel_w_Manta_Mounts/README.md | ❌ FAILURE | Relative link 'STLs/M5P%20Spacers.stl' is invalid! |
| MacBoy__Pro/Hex_Mid_Panel_w_Manta_Mounts/README.md | ❌ FAILURE | Relative link 'STLs/M5P%20Spacers.stl' is invalid! |
| MacBoy__Pro/Hex_Mid_Panel_w_Manta_Mounts/README.md | ❌ FAILURE | Relative link 'STLs/M5P%20Spacers.stl' is invalid! |
I am a 🤖, this comment was generated automatically!
Made with ❤️ by the VoronDesign GitHub Team
mjonuschat
suggested changes
Jun 19, 2025
| - CAD/Hex_Mid_Panel_Manta.step | ||
| stl: | ||
| - STLs/Hex_Mid_Panel_Manta.stl | ||
| - STLs/M5P Spacers.stl |
There was a problem hiding this comment.
Can you replace the blank in this filename with an underscore please
| ## General Info | ||
| - Replaces the stock mid panel | ||
| - Can be printed without an MMU/ToolChanger | ||
| - Also print the [M5P Spacers](<STLs/M5P Spacers.stl>) if using the M5P in your build |
There was a problem hiding this comment.
Filename needs to be updated here as well
| ## BOM | ||
| | Item | Qty | Notes | | ||
| | --- | --- | --- | | ||
| | M3x8 BHCS | 12-16 | 16 required only if using the M5P with the [M5P Spacers](<STLs/M5P Spacers.stl>) | |
There was a problem hiding this comment.
Filename needs to be updated here as well
| | --- | --- | --- | | ||
| | M3x8 BHCS | 12-16 | 16 required only if using the M5P with the [M5P Spacers](<STLs/M5P Spacers.stl>) | | ||
| | M3 Nuts | 8 | | ||
| | M3 heat set inserts | 4-8 | 8 required only if using the M5P with the [M5P Spacers](<STLs/M5P Spacers.stl>) | |
There was a problem hiding this comment.
Filename needs to be updated here as well
| 1. Install 4 heatset inserts into the provided holes on the back of the mid panel  | ||
| 1. Load 8 M3 nuts into the back of the Z gantry extrusions | ||
| 1. Slide the mid panel in place of the stock mid panel and attach with 8 M3x8 BHCS | ||
| 1. **If using the Manta M5P**, install the additional 4 heatset inserts into the [M5P Spacers](<STLs/M5P Spacers.stl>) now  |
There was a problem hiding this comment.
Filename needs to be updated here as well
| 1. Load 8 M3 nuts into the back of the Z gantry extrusions | ||
| 1. Slide the mid panel in place of the stock mid panel and attach with 8 M3x8 BHCS | ||
| 1. **If using the Manta M5P**, install the additional 4 heatset inserts into the [M5P Spacers](<STLs/M5P Spacers.stl>) now  | ||
| 1. **If using the Manta M5P**, attach the [M5P Spacers](<STLs/M5P Spacers.stl>) to the mid panel with 4 M3x8 BHCS  |
There was a problem hiding this comment.
This should be the last one requiring an update
There was a problem hiding this comment.
Please rename and replace whitespace with underscore
