[Grid] Adjust breakpoints and shell margin values #1042

@xak

Description

@xak

Some values are not correct with the latest specs

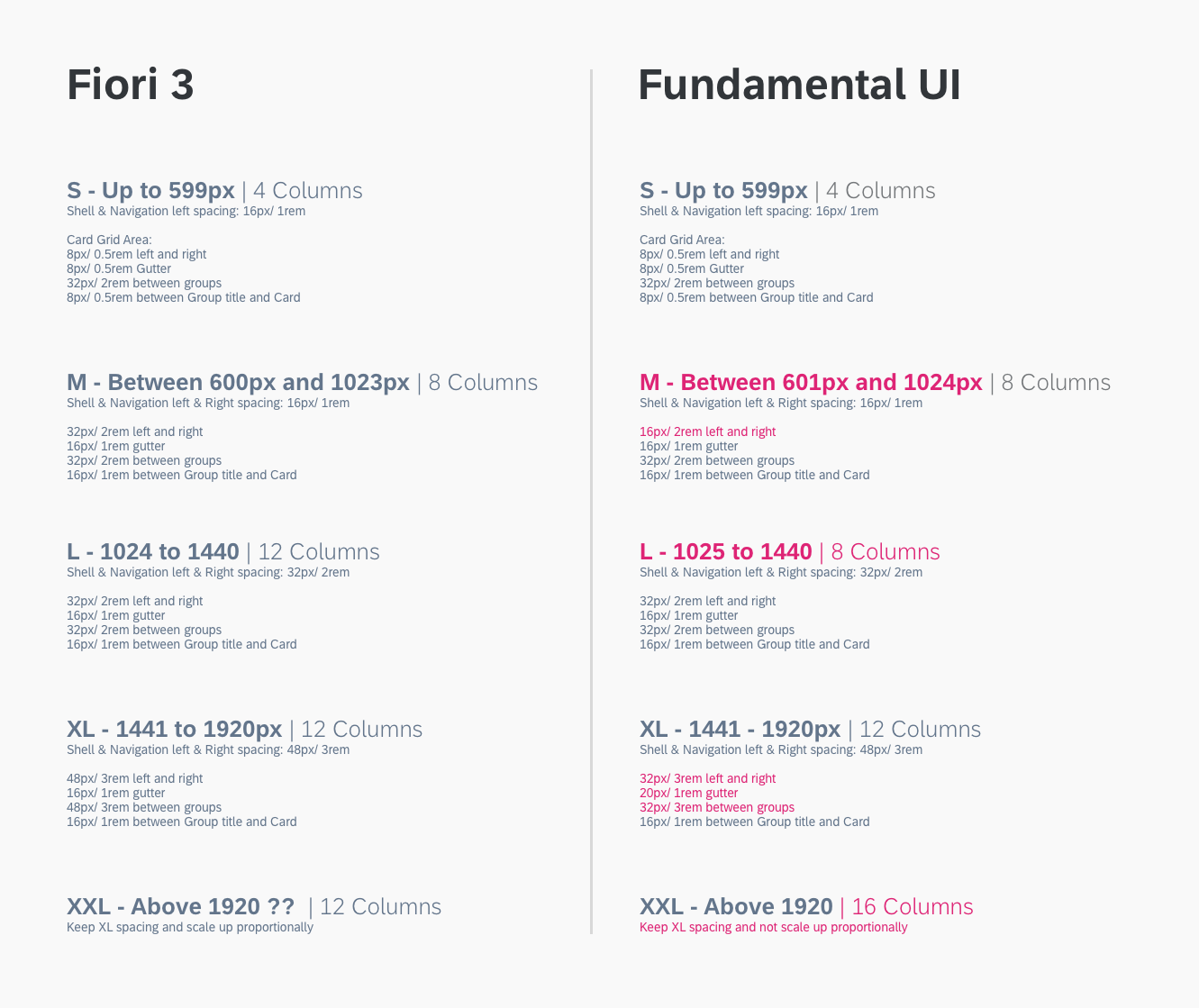

Reported differences ...

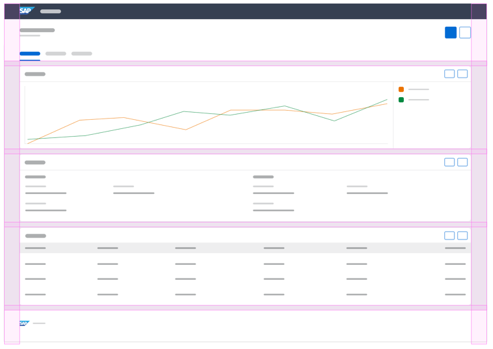

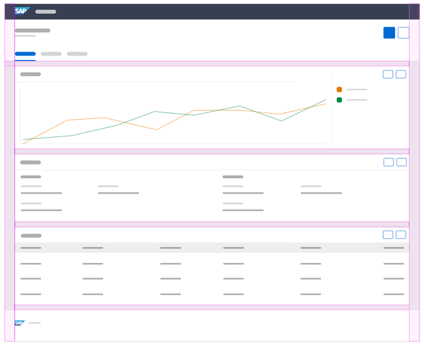

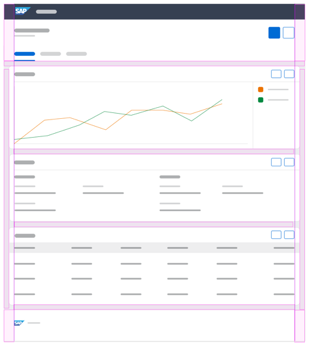

Specs

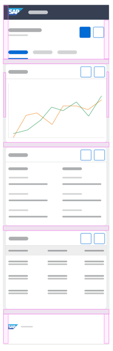

S

Small Screens @media (max-width:599px)
Shell & Navigation:
Left Spacing 16px/ 1rem
Card Grid Area:
left and right of Screen 8px/ 0.5rem
Gutter 8px/ 0.5rem
Space between groups 48px/ 3rem
Under group title (spacing same as gutter) 8px/ 0.5rem


M

Medium Screens @media (min-width:600px) and(max-width:1023px)
Shell & Navigation:
Left Spacing 32px/ 2rem
Card Grid Area:
left and right of Screen 32px/ 2rem
Gutter 16px/ 1rem
Space between groups 48px/ 3rem
Under group title (spacing same as gutter) 16px/ 1rem


L

Large Screens @media (min-width:1024px) and (max-width:1039px)
Shell & Navigation:
Left Spacing 32px/ 2rem
Card Grid Area:
left and right of Screen 32px/ 2rem
Gutter 16px/ 1rem
Space between groups 48px/ 3rem
Under group title (spacingsame as gutter) 16px/ 1rem


XL

X-Large Screens @media (min-width:1440px) and (max-width:1919px)
Shell & Navigation:
Left Spacing 48px/ 3rem
Card Grid Area:
left and right of Screen 48px/ 3rem
Gutter 16px/ 1rem
Space between groups 48px/ 3rem
Under group title (spacing same asgutter) 16px/ 1rem

XXL

XX-Large Screens @media (min-width:1920px)
XL spacing is maintained and scaled up proportionally for ultra definition XXL screens.

This is not possible with our current setup.
