[PHI]Change feed_op to phi kernel #49116

YuanRisheng · 2022-12-16T09:13:23Z

PR types

Others

PR changes

Others

Describe

背景：
执行器的需求，需要将feed和fetch改写成PHI Kernel统一执行调度
本PR将feed_op算子改成PHI Kernel，详细包括以下工作：
1，FeedList继承ExtendedTensor，接入PHI Kernel执行体系
2，改写feed_op算子逻辑为PHI Kernel的形式
3，完善RawTensor功能，提供与GetMutable相匹配的Get接口
4，支持ExtendedTensor输入类型，对注册机制进行扩展
5，为缓存PHI KernelContext机制添加检查验证功能函数
6，重构全局自定义设备类型获取代码

TODO：
1，本PR虽然为是否缓存KernelContext添加了检查功能函数，但并未将代码当中的need_prepare_phi_data_的滥用情况都收到改函数当中，后续PR会完善该检查功能函数，将代码中使用need_prepare_phi_data_的地方收到这个函数里，提高可维护性
2，支持设备无关Kernel单独的注册宏

paddle-bot · 2022-12-16T09:13:27Z

你的PR提交成功，感谢你对开源项目的贡献!
请关注后续CI自动化测试结果，详情请参考Paddle-CI手册。
Your PR has been submitted. Thanks for your contribution!
Please wait for the result of CI firstly. See Paddle CI Manual for details.

…ch_update

jiahy0825 · 2022-12-22T06:18:52Z

paddle/fluid/framework/operator.cc

+}
+
+void OperatorWithKernel::CheckWhetherPreparePhiData(
+    const VariableNameMap& innames,


函数没有用到 innames 这个变量

This function has not used parameter innames.

这个是预留的参数，后续要把其他地方的prepare_phi_data整合到这个里边会用到

jiahy0825 · 2022-12-22T06:24:08Z

paddle/fluid/framework/operator.cc

+        if (HasSameTensorType<phi::DenseTensor>(phi_output, var_output) ||
+            HasSameTensorType<phi::SparseCooTensor>(phi_output, var_output) ||
+            HasSameTensorType<framework::Strings>(phi_output, var_output)) {
+          need_prepare_phi_data_ = true;
+        }


只要有一个 tensor 的类型相同，就需要准备 phi_data 吗？与前面的注释不符

// Check each tensor in KernelContext, if there is a tensor that has
// different type with variable. The PhiKernelContext need be reConstructed.

Do we need to prepare phi_data as long as there is a tensor that has the same type as Variable? This is inconsistent with the above comments.

谢谢，这里确实有问题，我修改一下

zyfncg · 2022-12-22T06:22:57Z

paddle/fluid/framework/feed_fetch_method.cc


 void SetFeedVariable(Scope* scope,
-                     const Strings& input,
+                     const std::vector<std::string>& input,


这里为什么输入又换成了vector<std::string>?

这个函数衔接Python传入数据，Python传入的list string无法转换成Strings，这里需要替换成vector<std::string>

zyfncg · 2022-12-22T06:31:28Z

paddle/fluid/framework/operator.cc

+    const auto& phi_kernel_context = impl_->getKernelContext();
+    size_t phi_tensor_index = 0;
+    // Check each tensor in KernelContext, if there is a tensor that has
+    // different type with variable. The PhiKernelContext need be reConstructed.


reConstructed->reconstructed

zyfncg · 2022-12-22T06:33:44Z

paddle/fluid/framework/operator.cc

+    if (phi_kernel_context->OutputsSize() >= phi_tensor_index) {
+      need_prepare_phi_data_ = true;
+      return;
+    }


这里的判断以及处理逻辑和prepare_phi_data有什么关联？

缓存的数据大小已经和现在传入的tensor大小不一致了，说明需要重新构造KernelContext，所以需要处理prepare_phi_data

zyfncg · 2022-12-22T06:37:12Z

paddle/fluid/framework/operator.cc

+        auto var_output = scope.FindVar(var_name);
+        auto phi_output = phi_kernel_context->MutableOutputAt<phi::TensorBase>(
+            phi_tensor_index);


从map中取值和从vector中按顺序取值可以正好一一对应上吗？

这个应该是能对上的，std::map是有序的，此外我们构造KernelContext使用的RuntimeContext也是使用的这个方式迭代拿到的输入输出

这里是不是对不上，咱们kernelcontext拿的KernelSignature返回的input和output，如果是直接用op的Input和Output，可能会对不上

谢谢，这个确实有问题，已修复

zyfncg · 2022-12-22T06:47:39Z

paddle/fluid/framework/string_array.h

+// stored in a vector as PHI kernel argument.
+
+template <typename T>
+class PHIVector : public phi::ExtendedTensor,

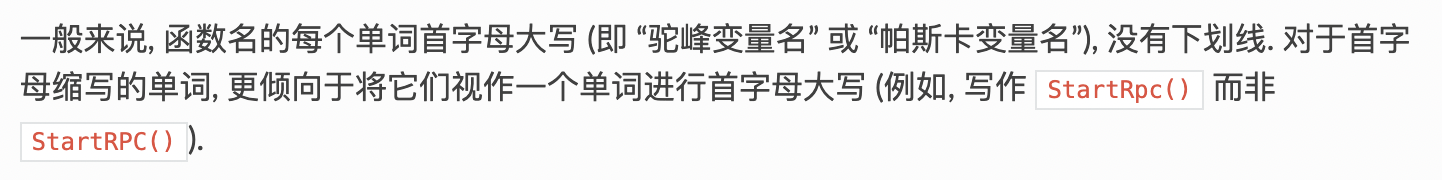

按照命名规范是不`PhiVector`更合适一些？

好的，谢谢

zyfncg · 2022-12-22T06:50:43Z

paddle/fluid/jit/layer.cc

 PD_SPECIALZE_ATTRIBUTE_TYPE(std::vector<int>)
 PD_SPECIALZE_ATTRIBUTE_TYPE(std::vector<float>)
-PD_SPECIALZE_ATTRIBUTE_TYPE(std::vector<std::string>)
+PD_SPECIALZE_ATTRIBUTE_TYPE(framework::Strings)


这里的宏看着是注册Attribute类型的，Strings目前是不应该算Input类型？

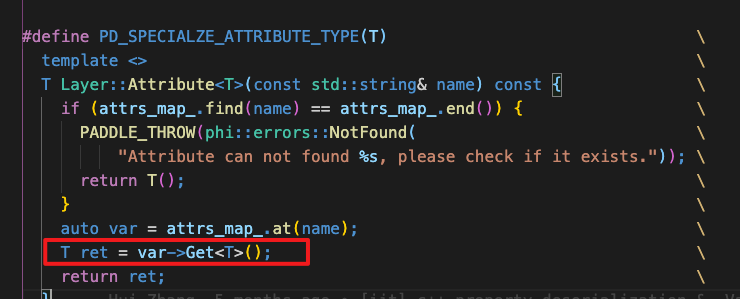

原因是这里的attribute实际保存的是variable类型的数据，会和framework的Strings类型存在交互

这里和feed op的改造有关吗？jit应该是留杰他们单独整的一套吧，attribute类型里原先就有std::vector<std::string>，我们好像不应该把这里改成var系列的，如果真有必要的话，也得是平行再增加

这里我并没有改成var系列的，而是它本身就是var。这里确实也可以不用改，但是必须要对variable能够获取的类型进行添加，即添加支持获取std::vector<std::string>，不过潜在分险点就是一单出现和framework::Strings交互会报错，我觉得比较好的方式就是和framework的数据结构统一。

已和留杰对齐后取消jit的修改

zyfncg · 2022-12-22T06:54:52Z

paddle/fluid/operators/controlflow/feed_op.cc

-  void operator()(const phi::DenseTensor &in_tensor) const {
-    phi::DenseTensor *out_tensor = out_var_->GetMutable<phi::DenseTensor>();
+  void operator()(const phi::DenseTensor& in_tensor) const {
+    phi::DenseTensor* out_tensor = &(out_var_.Get<phi::DenseTensor>());


这里为什么换成了Get，如果是const类型的tensor后面是怎么修改的？

这里是个语法细节，首先需要明确，这里的out_var变量已经不是之前的variable指针，换成了RawTensor实例对象（根据威行建议，会把名字再换回RawTensor），这里operator()函数是const成员函数，实例对象必须调用const成员函数。RawTensor的GetMutable函数是非const的，这里无法使用，必须使用带有const的Get函数

zyfncg · 2022-12-22T06:55:08Z

paddle/fluid/operators/controlflow/feed_op.cc

-  void operator()(const framework::Strings &in_str) const {
-    framework::Strings *out_str = out_var_->GetMutable<framework::Strings>();
+  void operator()(const framework::Strings& in_str) const {
+    framework::Strings* out_str = &(out_var_.Get<framework::Strings>());


chenwhql · 2022-12-22T11:22:16Z

paddle/fluid/operators/controlflow/feed_op.cc

    paddle::framework::EmptyGradOpMaker<paddle::imperative::OpBase>,
    paddle::operators::FeedOpInfoMaker);
+
+PD_REGISTER_KERNEL(feed_dense_tensor,


这里T是需要的吗？用GENARAL那个减少一些代码可以吗？

谢谢，已修改

chenwhql · 2022-12-22T11:31:50Z

paddle/fluid/operators/controlflow/feed_op.cc

 private:
-  framework::Variable *out_var_;
-  const platform::Place &place_;
+  framework::Raw out_var_;


这里是不是应该用T类型存储值？Raw应该是尽量避免使用的，用any是比较慢的，这个op还是相当高频的

这里无法使用T来存储，这个class有三个operator()重载，每个重载处理不同的out_var类型，如果是使用T类型，那么out_var的类型是固定的，编译会报错

已去除Raw，通过拆分FeedVariableVisitor的逻辑来实现

chenwhql · 2022-12-22T11:39:05Z

paddle/fluid/jit/layer.cc

 PD_SPECIALZE_ATTRIBUTE_TYPE(std::vector<int>)
 PD_SPECIALZE_ATTRIBUTE_TYPE(std::vector<float>)
-PD_SPECIALZE_ATTRIBUTE_TYPE(std::vector<std::string>)
+PD_SPECIALZE_ATTRIBUTE_TYPE(framework::Strings)


这里和feed op的改造有关吗？jit应该是留杰他们单独整的一套吧，attribute类型里原先就有std::vector<std::string>，我们好像不应该把这里改成var系列的，如果真有必要的话，也得是平行再增加

chenwhql · 2022-12-28T02:28:54Z

paddle/fluid/operators/controlflow/feed_op.cc

+  if (platform::is_same_place(in_tensor.place(), place)) {
+    *out = in_tensor;
+  } else {
+    platform::DeviceContext* context =


这里的place就是dev_ctx的place的话，是不是可以直接用输入参数的dev_ctx

…ch_update

gglin001 · 2023-01-11T06:51:57Z

LGTM for changes to IPU part

jiahy0825 · 2023-01-13T11:39:06Z

paddle/fluid/operators/controlflow/feed_op.cc

+    custom_cpu,
+    ALL_LAYOUT,
+    paddle::operators::FeedDenseTensorKernel<phi::CustomContext>,
+    ALL_DTYPE) {}


此处只注册了 custom_cpu 的 kernel，如果注册了其他名称的自定义设备（例如现在的科大项目），此处是感知不到的，代码会挂掉吗？

Here only registers custom_cpu kernel, if users have registered custom devices with other name, will these codes fail?

这里注册其他名称的自定义设备也不会有问题，只要跑起来有匹配的对应的backend就行

chenwhql · 2023-01-13T12:30:31Z

paddle/fluid/operators/controlflow/feed_op.cc

 }  // namespace operators
 }  // namespace paddle

+// TODO(YuanRisheng): Maybe we need design a new registry macro for


这个我们可能需要提高下优先级

zhiqiu

LGTM

XiaoguangHu01

LGTM

change feed_op to phi kernel

7c386a7

YuanRisheng added 10 commits December 16, 2022 09:20

fix ci bugs

9b83392

fix build bugs

ea17535

Merge branch 'develop' of github.com:YuanRisheng/Paddle into feed_fet…

2fa1ef2

…ch_update

fix ci bugs

a61e0d9

fix compile bugs

51e1da2

fix ci bugs

bb9dba9

perfect code

d671d4f

perfect comment code

afe2e1d

fix install bugs

da957c6

deal with conflict

c208e38

jiahy0825 reviewed Dec 22, 2022

View reviewed changes

zyfncg reviewed Dec 22, 2022

View reviewed changes

chenwhql reviewed Dec 22, 2022

View reviewed changes

YuanRisheng added 2 commits December 22, 2022 13:36

modify code according comment

a0beb88

remove visitor in feed_op

fdeac22

chenwhql reviewed Dec 28, 2022

View reviewed changes

YuanRisheng added 2 commits December 28, 2022 13:19

modify according comment

13bdcca

perfect code according comment

1e25415

PaddlePaddle deleted a comment from chenwhql Dec 28, 2022

YuanRisheng added 8 commits December 29, 2022 02:57

Merge branch 'develop' of github.com:YuanRisheng/Paddle into feed_fet…

f3c8ef6

…ch_update

add infershape

523334f

fix py3 bugs

2b0e744

Merge branch 'develop' of github.com:YuanRisheng/Paddle into feed_fet…

f69e076

…ch_update

fix getexpected kernel type

3700dd3

fix getexpected kernel type

a885dbc

Merge branch 'develop' of github.com:YuanRisheng/Paddle into feed_fet…

72a1731

…ch_update

fix ci bugs

c34bcf4

Merge branch 'develop' of github.com:YuanRisheng/Paddle into feed_fet…

d49bee7

…ch_update

YuanRisheng added 4 commits January 11, 2023 13:02

add registry for custom device

bdbc7d4

fix py3 bugs

ed50ea3

fix floating point error

685478b

fix py3 test bugs

8151a20

jiahy0825 reviewed Jan 13, 2023

View reviewed changes

chenwhql approved these changes Jan 13, 2023

View reviewed changes

jiahy0825 approved these changes Jan 13, 2023

View reviewed changes

zhiqiu approved these changes Jan 16, 2023

View reviewed changes

zyfncg approved these changes Jan 16, 2023

View reviewed changes

XiaoguangHu01 approved these changes Jan 17, 2023

View reviewed changes

YuanRisheng merged commit f7f1dc0 into PaddlePaddle:develop Jan 17, 2023

tsocha mentioned this pull request Jan 25, 2023

Broken Debug build type after #49116 - Assertion error #50027

Closed

This was referenced Mar 25, 2023

fix operator need_prepare_phi_data_ #52139

Closed

fix operator need_prepare_phi_data_ #52262

Closed
