【本PR工作】
对_特定情况_下的 conv2d_1x1 转换为 FC 计算,同时为了解决 input_channel 较大时单个线程需要遍历计算 input_channel 次乘累加操作,扩大了 4 倍线程数量,即将 input_channel 分成 4 部分,每个线程负责其中一部分的计算,然后 4 个线程通过 local memory 把中间乘累加结果再加在一起。

对比之前的方案,核心差异点:

  • gws 由 (output_channel / 4, 1, 1) 扩大为 (output_channel / 4, 4, 1),线程数量扩大了,input_channel 越大,加速效果越明显;
  • weights 存储方式由 image2d/half4 调整为 half16,一个线程线性读取连续的 16个 half 数据,推测访存速度可会提升。
conv2d_1x1 global work size local work size
original (output_channel / 4, 1, 1) tune找到最优
new (output_channel / 4, 4, 1) fixed (32, 4, 1)

【效果】
MobileNetV3_small_x1_0_infer 模型,其中 19 个 conv1x1 可以使用 FC 代替,模型整体加速比 和 kernel 加速比如下:

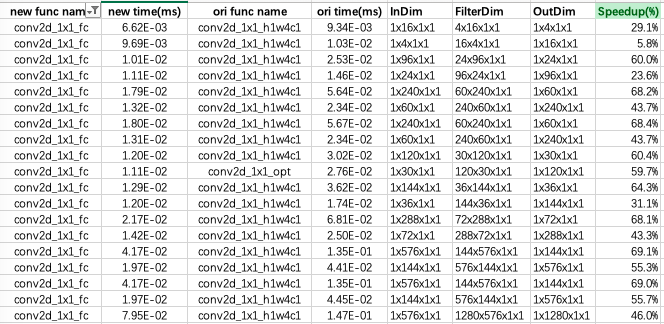

MobileNetV3_small_x1_0_infer kernel profiling on armv7 on 845

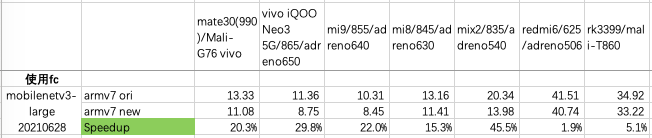

MobileNetV3_large_x1_0_infer 模型,其中 17 个 conv1x1 可以使用 FC 代替,模型整体加速比如下:
