symbol hierarchy for out-of-class member definitions aren't processed correctly by vscode

[joelhock]

Observed behavior

When the cursor is on a out-of-class member definition, vscode does not display the symbol in the breadcrumb. This does work in clangd. It's unclear to me if this is because ccls is doing something wrong, the ccls vscode extension, or vscode itself.

possibly vscode is confused because the out-of-class definition is a child of the class, but isn't contained within the class's extent?

{
    "jsonrpc": "2.0",
    "id": 604,
    "result": [
        {
            "name": "Foo",
            "detail": "class Foo {}",
            "kind": 5,
            "range": {
                "start": {
                    "line": 0,
                    "character": 0
                },
                "end": {
                    "line": 5,
                    "character": 1
                }
            },
            "selectionRange": {
                "start": {
                    "line": 0,
                    "character": 6
                },
                "end": {
                    "line": 0,
                    "character": 9
                }
            },
            "children": [
                {
                    "name": "bar",
                    "detail": "void Foo::bar()",
                    "kind": 6,
                    "range": {
                        "start": {
                            "line": 1,
                            "character": 4
                        },
                        "end": {
                            "l ine": 3,
                            "character": 5
                        }
                    },
                    "selectionRange": {
                        "start": {
                            "line": 1,
                            "character": 9
                        },
                        "end": {
                            "line": 1,
                            "character": 12
                        }
                    },
                    "children": []
                },
                {
                    "name": "baz",
                    "detail": "void Foo::baz()",
                    "kind": 6,
                    "range": {
                        "start": {
                            "line": 7,
                            " character": 0
                        },
                        "end": {
                            "line": 9,
                            "character": 1
                        }
                    },
                    "selectionRange": {
                        "start": {
                            "line": 7,
                            "character": 10
                        },
                        "end": {
                            "line": 7,
                            "character": 13
                        }
                    },
                    "children": []
                }
            ]
        }
    ]
}

Expected behavior

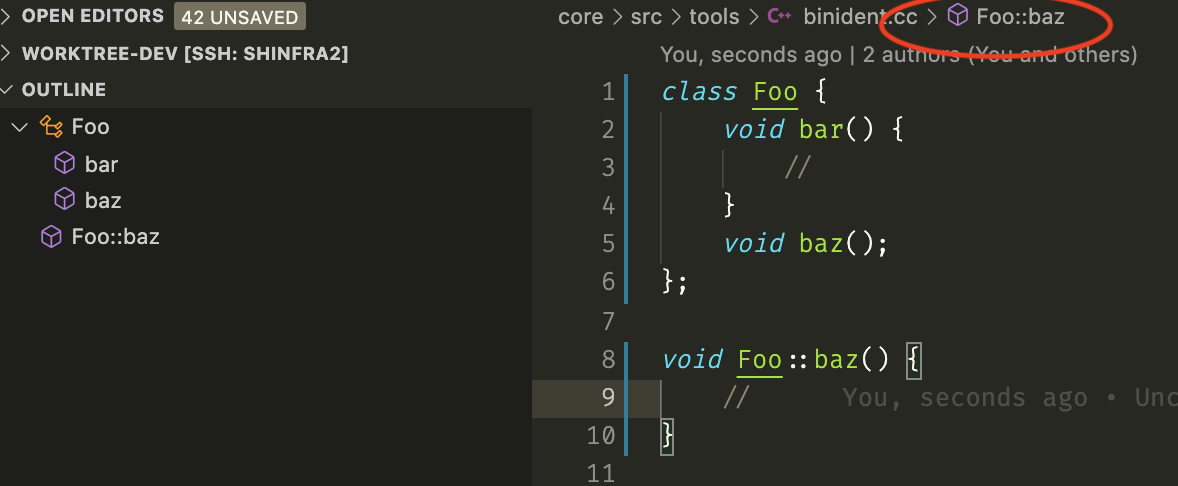

Something more like what happens with clangd:

Steps to reproduce

Recreate code from screenshots. See that putting cursor on in-class definition of bar() on line 5 displays function in breadcrumb at top of screenshot, while putting cursor on out-of-class definition of baz() on line 9 does not.

System information

• ccls version (git describe --tags --long): 0.20201219-5-g4cd308d7
• clang version: 12
• OS: linux
• Editor: vscode 1.55.2
• Language client (and version): vscode ccls extension

[FederAndInk]

You can look at: #789 and #674 for alternative method to provide document symbols

[joelhock]

thanks @FederAndInk
with your change, i get file.cc > baz as the symbol path for the out-of-line definition, where I'd rather see file.cc > Foo::baz, but that's nitpicky at this point.
