Screen is skewed incredibly far to the side

[nonnymoose]

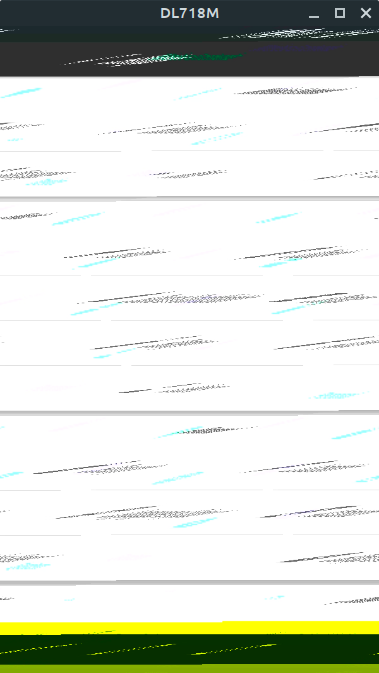

This is the settings screen.

This is really crazy! What can I do to provide some more useful information? (Given that this issue is probably not easily reproduced :)

[rom1v]

It seems similar to #33. I have no clue.

[rom1v]

Could you try to record your screen using screenrecord:

adb screenrecord /sdcard/file.mp4

And pull the file:

adb pull /sdcard/file.mp4

Is the video ok?

[nonnymoose]

That works fine, although it does give a message that is unclear whether it's a warning or just info:

The max width/height supported by codec is 1280x720

(my screen resolution is 1024x600)

mtp.mp4.gz

[nonnymoose]

The only thing I can think of that's similar between the two is we both have MTK devices.

[rom1v]

Could you try with a lower size?

scrcpy -m 800

[nonnymoose]

Sorry for the delay. It still exhibits the same problem if I use a lower resolution:

[rom1v]

Could you please execute this project to list video codec details on your device: CheckVideoCodecs?

[rom1v]

@nonnymoose Also, on this line, please try replacing SDL_PIXELFORMAT_YV12 by a different value. Especially:

• SDL_PIXELFORMAT_IYUV
• SDL_PIXELFORMAT_YUY2
• SDL_PIXELFORMAT_UYVY
• SDL_PIXELFORMAT_YVYU
• SDL_PIXELFORMAT_NV12
• SDL_PIXELFORMAT_NV21

[nonnymoose]

@rom1v Here are the video codec details:

video/avc -> OMX.MTK.VIDEO.ENCODER.AVC

=== OMX.MTK.VIDEO.ENCODER.MPEG4 ===
Supported types: [video/mp4v-es]

=== OMX.MTK.VIDEO.ENCODER.H263 ===
Supported types: [video/3gpp]

=== OMX.MTK.VIDEO.ENCODER.AVC ===
Supported types: [video/avc]
video/avc capabilities:
    default format: {mime=video/avc, bitrate-mode=1}
    profile levels: [0x1/0x1, 0x1/0x2, 0x1/0x4, 0x1/0x8, 0x1/0x10, 0x1/0x20, 0x1/0x40, 0x1/0x80, 0x1/0x100, 0x8/0x1, 0x8/0x2, 0x8/0x4, 0x8/0x8, 0x8/0x10, 0x8/0x20, 0x8/0x40, 0x8/0x80, 0x8/0x100, 0x1/0x200, 0x1/0x400, 0x1/0x800, 0x1/0x1000, 0x8/0x200, 0x8/0x400, 0x8/0x800, 0x8/0x1000]
    color formats: [2130706944, 2130708361, 2130706944, 2135033992, 19, 6, 11, 16, 2130707200, 15]
    bitrate: [1, 62500000]
    framerate: [0, 960]
TEST OK

=== OMX.MTK.AUDIO.ENCODER.VORBIS ===
Supported types: [audio/vorbis]

=== OMX.MTK.AUDIO.ENCODER.ADPCM.MS ===
Supported types: [audio/x-adpcm-ms]

=== OMX.MTK.AUDIO.ENCODER.ADPCM.DVI ===
Supported types: [audio/x-adpcm-dvi-ima]

=== OMX.google.aac.encoder ===
Supported types: [audio/mp4a-latm]

=== OMX.google.amrnb.encoder ===
Supported types: [audio/3gpp]

=== OMX.google.amrwb.encoder ===
Supported types: [audio/amr-wb]

=== OMX.google.flac.encoder ===
Supported types: [audio/flac]

=== OMX.google.vp8.encoder ===
Supported types: [video/x-vnd.on2.vp8]

[nonnymoose]

@rom1v Changing the render format didn't work. I've attached screenshots of the affects of each.
Summary:

SDL_PIXELFORMAT_IYUV: Skewing issue

SDL_PIXELFORMAT_YUY2: Black screen

SDL_PIXELFORMAT_UYVY: Black screen

SDL_PIXELFORMAT_YVYU: Black screen

SDL_PIXELFORMAT_NV12: Green screen?

SDL_PIXELFORMAT_NV21: Green screen

pixelformats.tar.gz

[rom1v]

OK, thank you for the tests. I don't know how screenrecord do on that device.

What if you record a raw H.264:

adb exec-out screenrecord --output-format=h264 - > test.h264

Interrupt with Ctrl+C, then play it in VLC:

vlc test.h264

?
