Cemu Native

Jump to bottom Edit New page
rawdatafeel edited this page Nov 13, 2023 · 34 revisions

THIS WIKI IS NO LONGER MAINTAINED. VISIT https://emudeck.github.io/ FOR THE NEW EMUDECK WIKI.

Cemu is a Wii U Emulator.

Website: https://cemu.info/

Github: https://github.com/cemu-project/Cemu

Compatibility List: https://compat.cemu.info/

This page is for the native build of Cemu. EmuDeck includes the native build of Cemu as an optional install. Both versions will remain installed. One quick way to tell the difference is to compare the two GUIs. For the Proton version of Cemu, visit https://github.com/dragoonDorise/EmuDeck/wiki/Cemu-Proton.

Native Cemu:

Proton Cemu:

Cemu Native Table of Contents

  1. Getting started with Cemu

  2. Common Issues

  3. Cemu Tips and Tricks

Getting started with Cemu

Back to the Top

IMPORTANT: Cemu is shifting away from encrypted ROMs (WUX, WUD). It is strongly recommended you use decrypted ROMs (Loadiine, WUA). Decrypted ROMs do not need any additional configuration and should launch without any issue.

Cemu is a fairly straight-forward emulator to set up, if you use decrypted ROMs. Place your ROMs in Emulation/roms/wiiu/roms. Do not install your games. No additional setup is required.

Read the Configuration section to learn more about Cemu and its folder locations.

For updates and DLC, read How to Manage DLC and Updates.

To launch your ROMs in game mode, use Steam ROM Manager and use one of the following parsers to play your Wii U ROMs:

  • EmulationStation-DE
  • Nintendo WiiU - Cemu (.rpx) - Native or Nintendo WiiU - Cemu (.wud, .wux, .wua) - Native
    • Read the File Formats section to learn more about these various file formats
    • .rpx and .wua are decrypted ROM formats
  • Emulators

If you intend on using encrypted ROMs, proceed to the Setting up Cemu Questionnaire.

Setting up Cemu Questionnaire

Back to the Top

IMPORTANT: Cemu is shifting away from encrypted ROMs (WUX, WUD). It is strongly recommended you use decrypted ROMs (Loadiine, WUA). Decrypted ROMs do not need any additional configuration and should launch without any issue. If you use decrypted ROMs, you do not need the following questionnaire.

Setting up Cemu Questionnaire

  1. Is your ROM encrypted? If yes, do you have a keys.txt in the right place with the correct keys for your games in the keys.txt file?
    1. What are keys?: Keys are required to decrypt Wii U ROMs. Your keys.txt needs to contain keys (one key per game) that must be dumped from a Wii U console. Any other method of obtaining keys is piracy and cannot be discussed here or on the EmuDeck discord.
    2. Which Cemu ROM Formats are encrypted?: File Formats
    3. keys.txt Location: /home/deck/.local/share/Cemu/
    4. If your ROM is NUS Format (a folder with .h3 and .app files), you will need to decrypt your ROM into the Loadiine format (folder format with three subfolders - code, content, meta). Decryption methods cannot be discussed here or on the EmuDeck discord.
  2. Is your ROM decrypted?
    1. Which Cemu ROM Formats are decrypted?: File Formats
    2. If your ROM is decrypted, place the ROM in Emulation/roms/wiiu/roms. Your game should launch without needing any keys.
  3. If you are getting an Unable to launch game error, did you place the keys.txt in the right place?
    1. keys.txt Location: /home/deck/.local/share/Cemu/
  4. If you placed the keys.txt in the right place, and your ROM is still not working, does your keys.txt have the correct key for the ROM?
    1. Even if you placed a key for your game in keys.txt, you may still have the incorrect key.
  5. Did you transfer your ROM from another computer and did you compare file sizes to ensure it transferred successfully?
  6. Did you turn on Proton in Steam? If yes, turn it off. If you are unsure, check.
    1. How do I check?: The Dangers of Proton

Cemu Native Configuration

Back to the Top

IMPORTANT: Cemu is shifting away from encrypted ROMs (WUX, WUD). It is strongly recommended you use decrypted ROMs (Loadiine, WUA). Decrypted ROMs do not need any additional configuration and should launch without any issue.

  • Type of Emulator: AppImage
  • Executable Location: /home/deck/Applications/Cemu.AppImage
  • Configuration: /home/deck/.config/Cemu/
  • Emulator Folders Location:
    • /home/deck/.config/Cemu/
      • Contains the following folders and files:
        • controllerProfiles
        • gameProfiles
        • settings.xml
    • /home/deck/.local/share/Cemu/
      • Contains the following folders and files:
        • graphicPacks
        • memorySearcher
        • log.txt
        • title_list_cache.xml
    • /home/deck/.cache/Cemu
      • Contains the following folders and files:
        • shaderCache
  • Persistent Storage: Emulation/roms/wiiu/mlc01/
  • ROM Location: Emulation/roms/wiiu/roms
    • Note the second roms folder in the path.
    • Do not put DLC / update files in the ROM path. Refer to How to Manage DLC and Updates
    • Place your game ROMs here, do not install your game ROMs
  • keys.txt Location: /home/deck/.local/share/Cemu/
    • The keys.txt is only necessary if the Wii U ROM is encrypted.
    • keys.txt needs to contain keys (one key per game) that must be dumped from a Wii U console. Any other method of obtaining keys is piracy and cannot be discussed here or on the EmuDeck discord.
  • Saves Location:
    • Symlink: Emulation/saves/Cemu/saves/
    • Target: Emulation/roms/wiiu/mlc01/usr/save

Works With

  • Steam ROM Manager
  • EmulationStation-DE

The Dangers of Proton

Back to the Top

IMPORTANT:

There is outdated info on the internet that indicates you need to set Proton on Cemu or on games added for this console by Steam ROM Manager in Steam. Turning on Proton is not necessary. DO NOT set Proton Compatibity on Cemu or Cemu games added to Steam. Do NOT set STEAM_COMPAT_MOUNTS in parameters.

Turning on Proton is not necessary because this is the native linux version of Cemu.

Do not open the Compatibility screen in Game Mode. Do not touch any of the settings on the Compatibility screen in Game Mode.

proton

How to Update Cemu

Back to the Top

How to Update Cemu

How to Launch Cemu in Desktop Mode

Back to the Top

How to Launch Cemu in Desktop Mode

  • Launch Cemu AppImage from the Applications Launcher (Steam Deck icon in the bottom left of the taskbar)
  • Launch the script from Emulation/tools/launchers, cemu.sh
  • Launch the emulator from Steam after adding it via the Emulators parser in Steam ROM Manager

Cemu Native File Formats

Back to the Top

  • Loadiine (rpx)
    • Three folders (code, content, meta)
    • Folders should be inside a folder with the name of the game. This game folder is placed in Emulation/roms/wiiu/roms (note the second roms)
    • Visual Reference:
    • Decrypted, does not require keys.txt
  • WUA
    • Decrypted, does not require keys.txt
  • WUX
    • Encrypted, requires keys.txt in /home/deck/.local/share/Cemu/
  • WUD
    • Encrypted, requires keys.txt in /home/deck/.local/share/Cemu/
  • NUS
    • A folder with .h3 and .app files
    • Encrypted, can be decrypted into a Loadiine (rpx) folder. Decryption methods cannot be discussed here or on the EmuDeck discord.

IMPORTANT:

  • Some of these formats may require keys. We cannot help you get these. Place your keys.txt in: /home/deck/.local/share/Cemu/
    • keys.txt needs to contain keys (one key per game) that must be dumped from a Wii U console. Any other method is piracy and cannot be discussed here or on the EmuDeck discord.
  • Once you put ROMs in place, you must refresh the list of games by right clicking in the Cemu UI and clicking Refresh Games List.
    • Your game will not show up in Cemu until you refresh.
  • Refer to #installing-dlc-and-updates, for DLC and Updates.

How to Convert to WUA

Back to the Top

The WUA format is a compressed version of the Loadiine format. It contains your base game, DLC, and updates all in one single file. The WUA format is a lot less fuss than the other formats, requires no keys, and is the most friendly format for EmulationStation-DE.

Here's how to convert to WUA:

Note:

  • Encrypted ROMs (WUX, WUD, NUS) cannot be converted to WUA

Tutorial

  1. Open Cemu
  2. Click Tools, Title Manager
  3. Either search for your ROM or find it in the list
  4. Select the ROM with the word base in the Type column
  5. Verify the pop-up prompt has your base game, your update, and your DLC files
    1. You can either place these update and DLC files in Emulation/roms/wiiu/roms temporarily or install them: #installing-dlc-and-updates
  6. Wait, it may take a while
  7. Right click in Cemu, and click Refresh Game List to refresh your file path in Cemu to the newly created WUA file

How to Manage DLC and Updates

Back to the Top

Preface

DLC and Updates must be installed using the title manager. DLC and Updates are saved to mlc01, in the Emulation/roms/wiiu folder.

IMPORTANT: Do not keep your DLC and update files in Emulation/roms/wiiu/roms. After installing these, you may either delete or move the files to a backup location. Keeping DLC and update files in this directory will create duplicates in Steam ROM Manager.

How to Install DLC and Updates

Back to the Top

Preface

DLC and Updates must be installed using the title manager. DLC and UPdates are saved to mlc01, in the Emulation/roms/wiiu folder.

IMPORTANT: Do not keep your DLC and update files in Emulation/roms/wiiu/roms. After installing them, you may either delete them or move them to a backup location. Keeping DLC and update files in this directory will create duplicates in Steam ROM Manager.

How to Install DLC and Updates

  1. Launch Cemu on Desktop Mode
  2. Click File in the top left, click Install game title, update, or DLC...
    • Visual Reference:
  3. Navigate to to your Update or DLC files
    • If your files are on your SD Card, click Other Locations, Computer, run, media, and navigate to your SD Card
    • Example SD Card Path: /run/media/mmcblk0p1
  4. Select the Update or DLC and click Open
    1. Visual Reference:
  5. Wait a moment, and your DLC or update will be successfully installed. Repeat for each DLC or update

Cemu Native Hotkeys

Back to the Top

Cemu comes with a Steam Input profile for Hotkeys. Activate the Steam Input profile by clicking the Game Controller icon in Game Mode, change the template to Emudeck - Cemu. The hotkeys below can only be used if you have the Steam Input profile active.

Hotkey Cemu
Toggle Screens L4 or R4
Swap Screens L5 or R5
Exit Select + Start
Blow Mic R3

Note:

  • The Blow Mic hotkey only works if you are using the gamepad.

For a tutorial on how to select Steam Input Profiles, refer to: https://github.com/dragoonDorise/EmuDeck/wiki/hotkeys#how-to-select-a-steam-input-profile.

Steam Deck Button Layout: https://github.com/dragoonDorise/EmuDeck/wiki/Hotkeys#steam-deck-button-layout

Common Issues

Back to the Top

Game Compatibility

Back to the Top

This section collects which games currently do not work on the native version of Cemu. These games likely work on the proton version of Cemu.

  • Tekken Tag Tournament 2
    • Date added to this page: May 6th, 2023

Cemu Version Issues

Back to the Top

This section collects a version history of Cemu and seeks to detail compatibility and general issues with the emulator.

  • Cemu Version 2.0.36
    • No Known Issues
    • Date added to this page: May 6th, 2023

Cemu Tips and Tricks

Back to the Top

How to Configure Gyro

Back to the Top

Gyro for Cemu requires SteamDeckGyroDSU. SteamDeckGyroDSU can be installed via EmuDeck, or it can be installed manually.

Visit https://github.com/dragoonDorise/EmuDeck/wiki/EmuDeck-Application-101#steamdeckgyrodsu to learn how to install and utilize SteamDeckGyroDSU.

How to Configure Gyro With External Controllers

Back to the Top

Some external controllers, including the Sony DualSense and the Nintendo Switch Pro Controller feature gyro controls. Cemu allows you to use this gyro with a little bit of set up.

Here's How

Desktop Mode

  1. In Desktop Mode, exit out of Steam
    • Your controls will switch to Lizard Mode. Use L2 to right click, R2 to left click, and the Right Trackpad to move the mouse
  2. Click the bluetooth icon in the bottom right of your taskbar and connect your controller
  3. Click the Steam icon in the bottom left of the taskbar and open Cemu AppImage
  4. At the top of the Cemu GUI, click Options, click Input settings
  5. Under the Controller 1 tab, press the - button to the right of the Controller drop-down twice
  6. The drop-down box will be empty and your controls will no longer be mapped, this is expected behavior
  7. Under the Controller 1 tab, press the + button to the right of the Controller drop-down
  8. Select SDLController for the API drop-down and select your controller under the Controller drop-down
  9. Click the Add button and Cemu will auto-map your controls
  10. Click the Settings button under the drop-down with your controller name
  11. Check the box to the left of Use motion
  12. Click the OK button
  13. Give the profile a unique name under the Profile drop-down box at the top and click Save
  14. Your controller is now configured with gyro, proceed to the Game Mode section to start using your controller in Game Mode

Game Mode

  1. In Game Mode, connect your controller
  2. Select your Wii U game
  3. On the Play screen, select the Controller icon to the right of the screen
  4. Select your controller tab at the top
  5. Click the Gear icon to the right, and click Disable Steam Input
  6. Your controller's gyro will now work for this selected game, repeat as needed for your other games

Post-Configuration

This section went over creating a new Player 1 profile for your external controller.

To switch between your new controller profile and the Steam Deck controller profile, open Cemu and open the input settings, select your preferred option in the Profile drop-down menu and click Load.

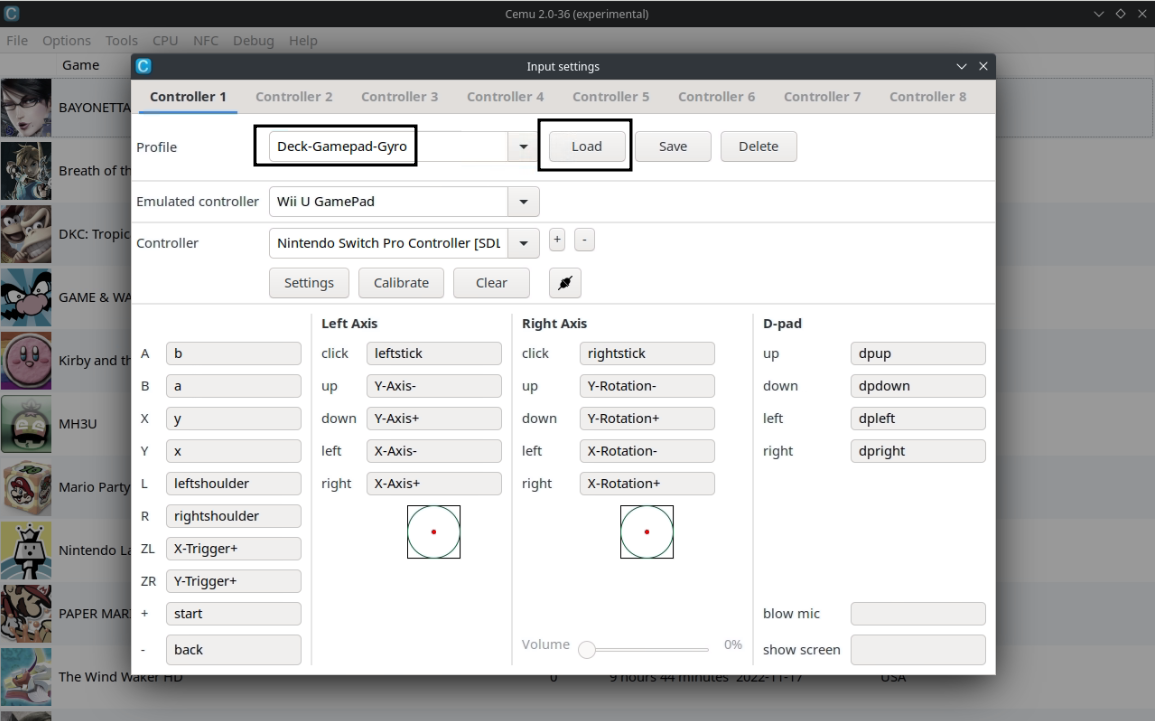

To switch back to the Steam Deck controls, select the Deck-Gamepad-Gyro profile:

How to Optimize Performance (Power Tools)

Back to the Top

Visit https://github.com/dragoonDorise/EmuDeck/wiki/EmuDeck-Application-101#power-tools to learn how to optimize performance using Power Tools.

How to Configure Multiplayer

Back to the Top

  1. Open Cemu
  2. It's recommended you enable multiplayer on a per-game basis. Turning on additional controllers can disable single player controls in a handful of games
  3. Right click a game, click Edit Game Profile
  4. Click Controller
  5. To the right of each Controller (Controller 2 through Controller 4), select the respective Deck # profile (Deck 2 for player 2 and so on)

How to Use the Wii U Pro Controller Configuration

Back to the Top

In some some games, the initial screen will prompt for a controller configuration: Wii U Gamepad or Wii U Pro Controller. Some games will automatically switch to the Wii U Pro Controller configuration if you choose it.

For example:

If you prefer to use the Wii U Pro Controller layout, you need to change the controller profile in Cemu. Make sure to change controller profiles on a per-game basis so it is persistent on EmuDeck updates.

Tutorial

  1. Right click the game, click Edit game profile
  2. Click the Controller tab
  3. Change the profile to Deck-P1
  4. When you launch a game, one of the following two things will happen:
    • Some games will prompt you to choose a controller layout, select the Wii U Pro Controller
    • Some games will automatically switch to the Wii U Pro Controller configuration

How to Configure Cemu Native to Work With EmulationStation-DE

Back to the Top

In order to use Cemu Native through EmulationStation-DE, you will have to enable it in the settings menu.

Here's How

  1. Open EmulationStation-DE
  2. Press Start
  3. Press Other Settings
  4. Press Alternative Emulators
  5. On Wiiu, select Cemu [Native]

How to Optimize Breath of the Wild

Back to the Top

IMPORTANT: You need Version 208 of Breath of the Wild to use FPS++. Read How to Manage DLC and Updates to learn how to install game updates for Cemu.

How to Configure Cemu

  1. In Desktop Mode, open Cemu AppImage
  2. Right click Breath of the Wild, click Edit graphic packs
  3. Click Download latest community graphic packs
  4. Click the ⌄ to the left of Mods
  5. Check the box to the left of FPS++
  6. Change the mode to Advanced Settings
  7. Change the Framerate Limit to 40FPS
  8. Close out of Cemu

How to Configure Game Mode

  1. In Game Mode, open Breath of the Wild
  2. Click the ... (the QAM) button
  3. Click the battery icon
  4. Click Advanced View
  5. Enable Use per-game profile
  6. Set the refresh rate to 40
  7. Read https://github.com/dragoonDorise/EmuDeck/wiki/EmuDeck-Application-101#power-tools to learn how to use the battery menu and Power Tools to further increase performance for Breath of the Wild

After doing the steps in the above two sections, Breath of the Wild will run at a stable 40 FPS with temporary occasional hiccups in new areas while it compiles shaders.

Add a custom footer
Clone this wiki locally
