+# TransferQueue Data System
+
+Last updated: 09/28/2025.
+
+This doc introduce [TransferQueue](https://github.com/TransferQueue/TransferQueue), an asynchronous streaming data management system for efficient post-training.
+
+
+<h2 id="overview"> Overview</h2>
+
+TransferQueue is a high-performance data storage and transfer system with panoramic data visibility and streaming scheduling capabilities, optimized for efficient dataflow in post-training workflows.
+
+<p align="center">
+  <img src="https://cdn.nlark.com/yuque/0/2025/png/23208217/1758696193102-a5654375-65a1-4e06-9c63-142b59df90b8.png" width="70%">
+</p>
+
+
+TransferQueue offers **fine-grained, sample-level** data management capabilities, serving as a data gateway that decouples explicit data dependencies across computational tasks. This enables a divide-and-conquer approach, significantly simplifying the design of the algorithm controller.
+
+
+<p align="center">
+  <img src="https://cdn.nlark.com/yuque/0/2025/png/23208217/1758696791245-fa7baf96-46af-4c19-8606-28ffadc4556c.png" width="70%">
+</p>
+
+
+
+
+<h2 id="components"> Components</h2>
+
+
+
+### Control Plane: Panoramic Data Management
+
+In the control plane, `TransferQueueController` tracks the **production status** and **consumption status** of each training sample as metadata. When all the required data fields are ready (i.e., written to the `TransferQueueStorage`), we know that this data sample can be consumed by downstream tasks.
+
+For consumption status, we record the consumption records for each computational task (e.g., `generate_sequences`, `compute_log_prob`, etc.). Therefore, even different computation tasks require the same data field, they can consume the data independently without interfering with each other.
+
+
+<p align="center">
+  <img src="https://cdn.nlark.com/yuque/0/2025/png/23208217/1758696820173-456c1784-42ba-40c8-a292-2ff1401f49c5.png" width="70%">
+</p>
+
+
+> In the future, we plan to support **load-balancing** and **dynamic batching** capabilities in the control plane. Besides, we will support data management for disaggregated frameworks where each rank manages the data retrieval by itself, rather than coordinated by a single controller.
+
+### Data Plane: Distributed Data Storage
+
+In the data plane, `TransferQueueStorageSimpleUnit` serves as a naive storage unit based on CPU memory, responsible for the actual storage and retrieval of data. Each storage unit can be deployed on a separate node, allowing for distributed data management.
+
+`TransferQueueStorageSimpleUnit` employs a 2D data structure as follows:
+
+- Each row corresponds to a training sample, assigned a unique index within the corresponding global batch.
+- Each column represents the input/output data fields for computational tasks.
+
+This data structure design is motivated by the computational characteristics of the post-training process, where each training sample is generated in a relayed manner across task pipelines. It provides an accurate addressing capability, which allows fine-grained, concurrent data read/write operations in a streaming manner.
+
+<p align="center">
+  <img src="https://cdn.nlark.com/yuque/0/2025/png/23208217/1758696805154-3817011f-84e6-40d0-a80c-58b7e3e5f6a7.png" width="70%">
+</p>
+
+
+> In the future, we plan to implement a **general storage abstraction layer** to support various storage backends. Through this abstraction, we hope to integrate high-performance storage solutions such as [MoonCakeStore](https://github.com/kvcache-ai/Mooncake) to support device-to-device data transfer through RDMA, further enhancing data transfer efficiency for large-scale data.
+
+
+### User Interface: Asynchronous & Synchronous Client
+
+
+The interaction workflow of TransferQueue system is as follows:
+
+1. A process sends a read request to the `TransferQueueController`.
+2. `TransferQueueController` scans the production and consumption metadata for each sample (row), and dynamically assembles a micro-batch metadata according to the load-balancing policy. This mechanism enables sample-level data scheduling.
+3. The process retrieves the actual data from distributed storage units using the metadata provided by the controller.
+
+To simplify the usage of TransferQueue, we have encapsulated this process into `AsyncTransferQueueClient` and `TransferQueueClient`. These clients provide both asynchronous and synchronous interfaces for data transfer, allowing users to easily integrate TransferQueue to their framework.
+
+
+> In the future, we will provide a `StreamingDataLoader` interface for disaggregated frameworks as discussed in [RFC#2662](https://github.com/volcengine/verl/discussions/2662). Leveraging this abstraction, each rank can automatically get its own data like `DataLoader` in PyTorch. The TransferQueue system will handle the underlying data scheduling and transfer logic caused by different parallelism strategies, significantly simplifying the design of disaggregated frameworks.
+
+
+<h2 id="show-cases"> Show Cases</h2>
+
+### General Usage
+
+The primary interaction points are `AsyncTransferQueueClient` and `TransferQueueClient`, serving as the communication interface with the TransferQueue system.
+
+Core interfaces:
+
+- (async_)get_meta(data_fields: list[str], batch_size:int, global_step:int, get_n_samples:bool, task_name:str) -> BatchMeta
+- (async_)get_data(metadata:BatchMeta) -> TensorDict
+- (async_)put(data:TensorDict, metadata:BatchMeta, global_step)
+- (async_)clear(global_step: int)
+
+
+We will soon release a detailed tutorial and API documentation.
+
+
+### verl Example
+
+
+The primary motivation for integrating TransferQueue to verl now is to **alleviate the data transfer bottleneck of the single controller `RayPPOTrainer`**. Currently,  all `DataProto` objects must be routed through `RayPPOTrainer`, resulting in a single point bottleneck of the whole post-training system.
+

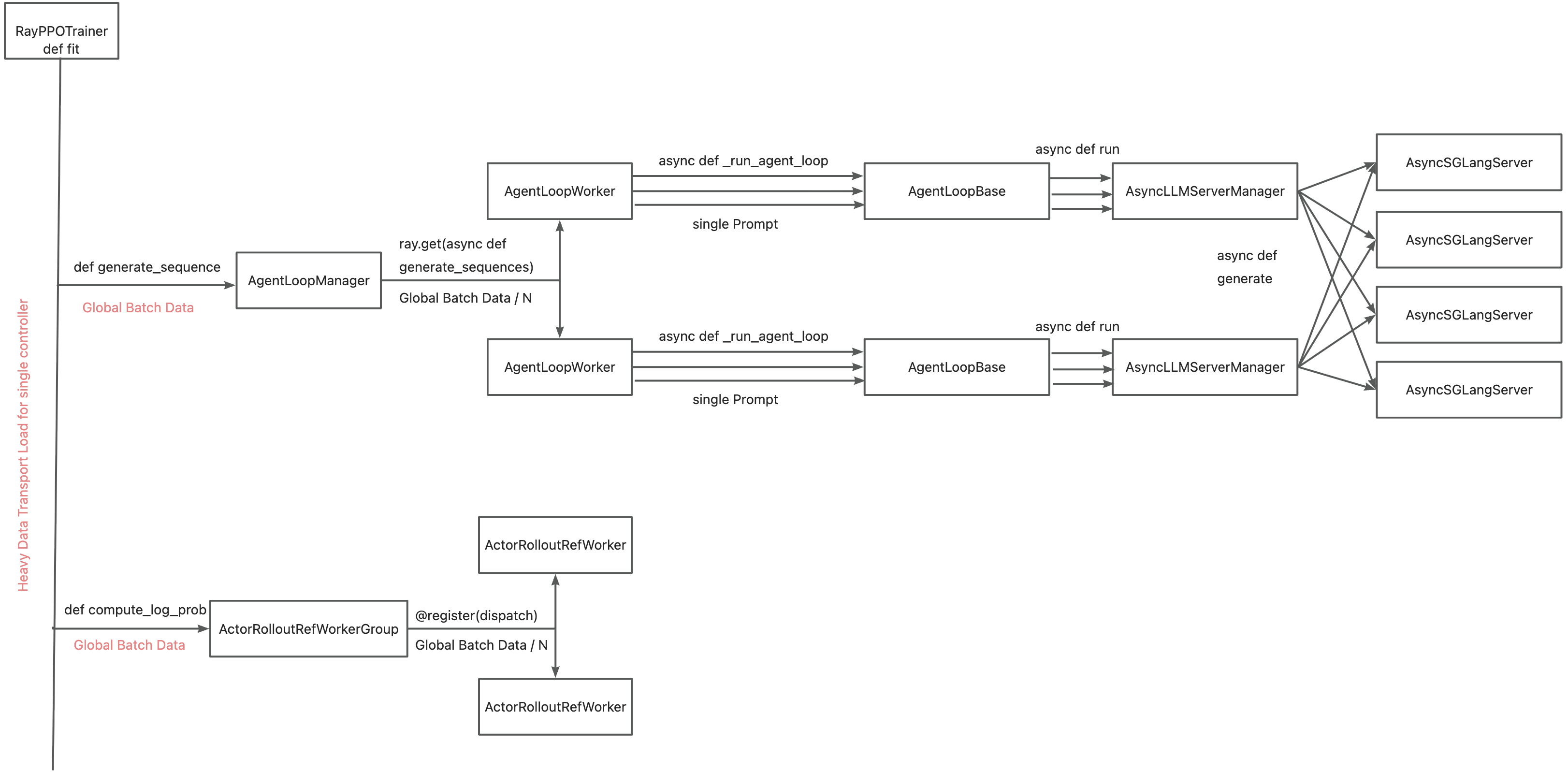

+![verl_dataflow_DataProto](https://cdn.nlark.com/yuque/0/2025/jpeg/23208217/1758704289414-bcc54228-716b-4d4a-ad3b-f9ace6d10fcf.jpeg)
+
+Leveraging TransferQueue, we separate experience data transfer from metadata dispatch by
+
+- Replacing `DataProto` with `BatchMeta` (metadata) and `TensorDict` (actual data) structures
+- Preserving verl's original Dispatch/Collect logic via BatchMeta (maintaining single-controller debuggability)
+- Accelerating data transfer by TransferQueue's distributed storage units
+

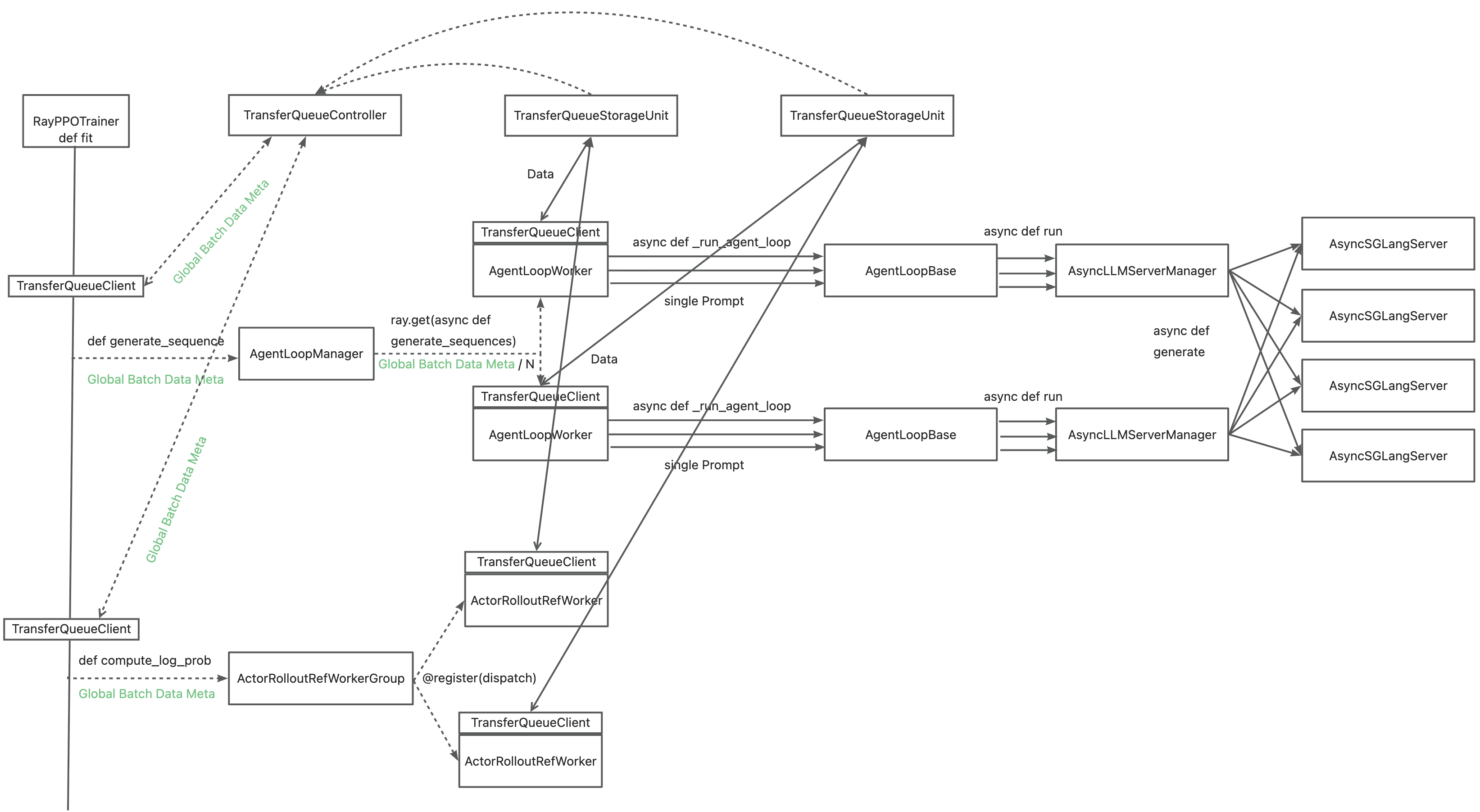

+![verl_dataflow_TransferQueue](https://cdn.nlark.com/yuque/0/2025/jpeg/23208217/1758704301666-0807dc06-766c-4a2d-9cde-889a6bb56b34.jpeg)
+
+
+You may refer to the [recipe](https://github.com/TransferQueue/TransferQueue/tree/dev/recipe/simple_use_case), where we mimic the verl usage in both async & sync scenarios.
+
+
+
+
+
+<h2 id="citation"> Citation</h2>
+Please kindly cite our paper if you find this repo is useful:
+
+```bibtex
+@article{han2025asyncflow,
+  title={AsyncFlow: An Asynchronous Streaming RL Framework for Efficient LLM Post-Training},
+  author={Han, Zhenyu and You, Ansheng and Wang, Haibo and Luo, Kui and Yang, Guang and Shi, Wenqi and Chen, Menglong and Zhang, Sicheng and Lan, Zeshun and Deng, Chunshi and others},
+  journal={arXiv preprint arXiv:2507.01663},
+  year={2025}
+}
+```
